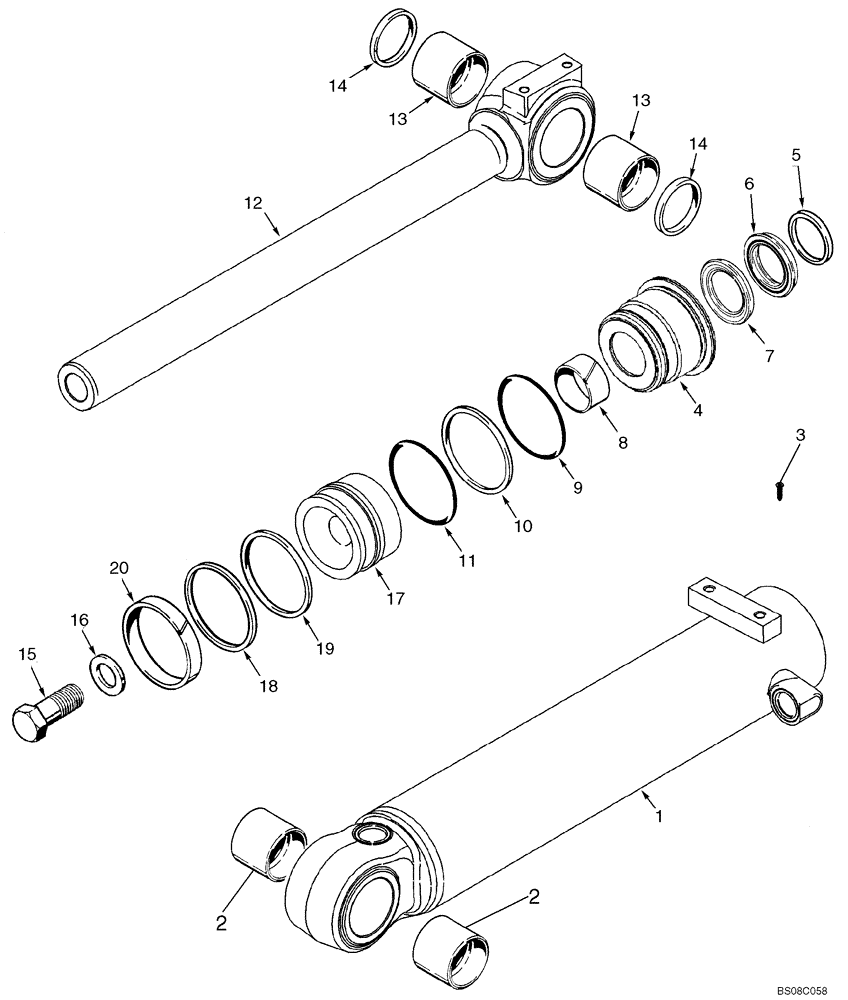

Запчасти Case 621D (08-26) - CYLINDER ASSY - LOADER BUCKET (XR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

XR LOADER BUCKET TILT

1шт.

87366695

CYLINDER ASSY.,Double Acting, 76.2mm Rod, 619.7mm Stroke

127 ID x 620 mm strk; Bucket Tilt; Incl. 1 - 20; Replaces 87405382

1шт.

87366695R

REMAN-HYD CYLINDER

621D S/N JEE0135501 & AFTER (1/03-)

1шт.

87366695C

CORE-HYD CYLINDER

Return Number

1шт.

87434293

SEAL KIT

Incl. Refs. 5 - 11, 19, 20, Used With Cylinder Assy. 87366695

1шт.

360984A1

SEAL KIT

SEALS, Incl. Refs. 5 - 11, 19, 20, Used With Cylinder Assy. 87405382

1шт.

1

339525A1

BARREL,127mm Bore Dia

Incl. Ref. 2

1шт.

2

87625613

BUSHING,70.14mm ID x 82.65mm OD x 36mm L

2шт.

3

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

339512A1

GLAND

Assembly; Incl. Refs. 4 - 11

1шт.

4

339511A1

GLAND

Packing

1шт.

5

D95148

WIPER SEAL

1шт.

1542881C1

SEAL KIT

Incl. Rod And Buffer Seals

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL, ROD

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, BUFFER

1шт.

8

336042A1

BUSHING

Bearing; Dia. 76.20

1шт.

9

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

1шт.

10

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

11

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

12

399350A1

ROD ASSY.

76.2 Dia; Incl. Ref. 13

1шт.

13

339521A1

BUSHING

69.8 Dia.

2шт.

14

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

4шт.

15

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. Ref. 15

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER

1шт.

339510A1

PISTON

Incl. Refs. 17 - 20

1шт.

17

339508A1

PISTON,126.33mm Bore, 76.31mm Rod, 72.4mm W

127.0 Dia Cylinder; 76.2 Dia Rod

1шт.

18

336030A1

SEAL,123.8mm ID x 128.52mm OD x 6.96mm Thk

127.0 Dia.

1шт.

19

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

127.0 Dia.

1шт.

20

336046A1

RING

Wear

1шт.
