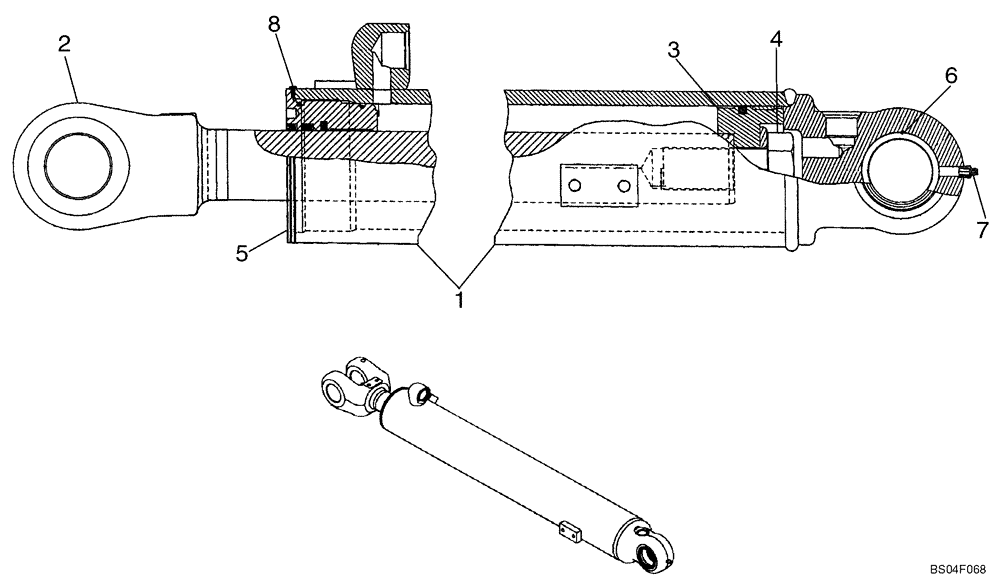

Запчасти Case 621D (08-25) - CYLINDER ASSY - LOADER BUCKET (XT LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER

1шт.

87442555

BUCKET CYLINDER,Double Acting, 63.5mm Rod, 819.9mm Stroke

114 ID x 819.9 mm strk; Lift; CNH CE Gray; Incl. 1 - 9

2шт.

87442555R

REMAN-HYD CYLINDER

621D (NA) (S/N JEE0135501 & AFTER) (1/03-)

2шт.

87442555C

CORE-HYD CYLINDER

Return Number

1шт.

1

87442557

TUBE,114.15 mm DIA x 1061.3 mm L

Incl. 1A

1шт.

2

87625614

BUSHING,57.44mm ID x 69.95mm OD x 20mm L

BUSHING; Replaces 363583A1

2шт.

2

87442559

ROD ASSY.

63,5 mm dia

1шт.

3

341971A1

PISTON

Incl. 3A-3D

1шт.

3a

341968A1

PISTON

1шт.

3b

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

1шт.

3c

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING

1шт.

3d

336045A1

RING

1шт.

4

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. 4A

1шт.

4a

NSS

NOT SOLD SEPARAT

Washer

1шт.

5

336379A1

GLAND

Cylinder; Incl. 5A -5G

1шт.

5a

336378A1

GLAND

1шт.

5b

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

5c

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Seal; Incl.

1шт.

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal

1шт.

5d

336041A1

BUSHING

1шт.

5e

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

1шт.

5f

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

5g

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

8

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Self Tapping

1шт.

9

360982A1

SEAL KIT

Seal; Incl. 3C, 3D, 5B - 5G; Includes 361000A1 Expandable Seal Ring For Service Replacement Of Ref. 3B Piston Seal

1шт.
