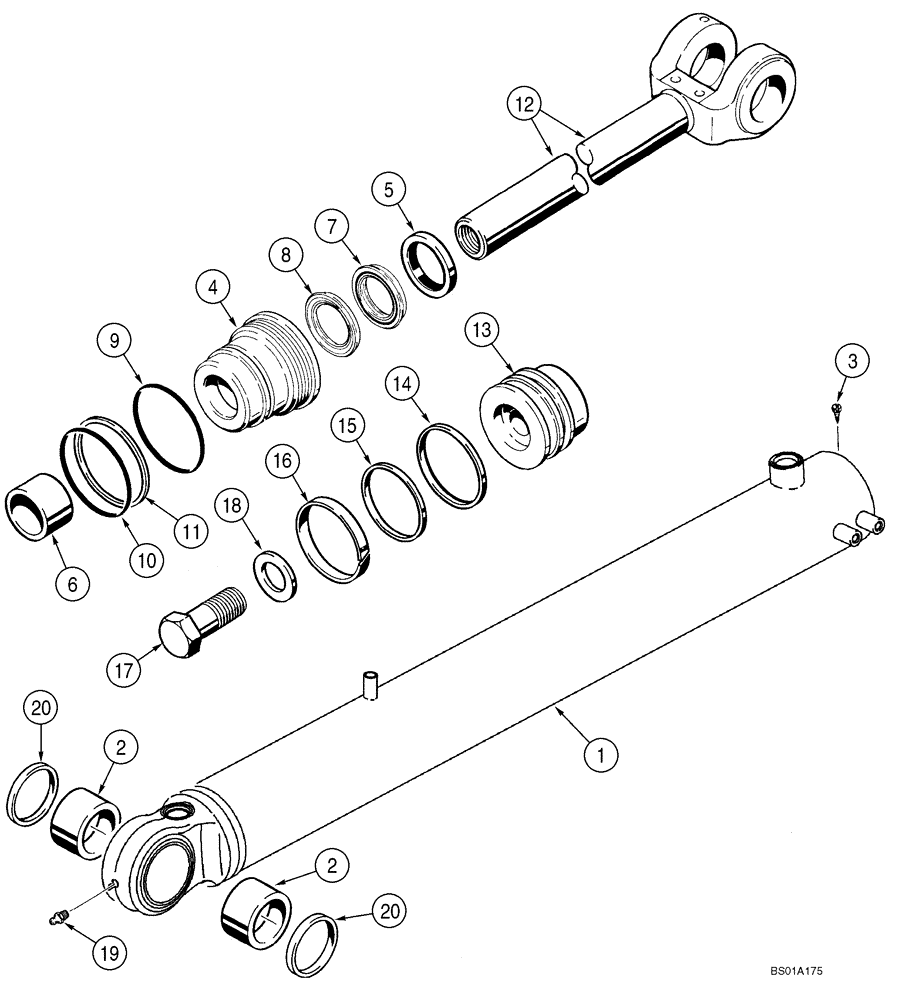

Запчасти Case 621D (08-24) - CYLINDER ASSY - LOADER BUCKET (XT LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER

1шт.

87405381

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 1130.1mm Stroke

105 ID x 955 mm strk; Bucket; Incl. 1 - 20

2шт.

1

381089A1

HYD CYL SLEEVE

Incl. 2

1шт.

2

87625614

BUSHING,57.44mm ID x 69.95mm OD x 20mm L

Bushing

2шт.

3

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

NSS

NOT SOLD SEPARAT

Gland, Cylinder; Incl. 4 - 11; Order Components

1шт.

4

381096A1

PACKING GLAND

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

1шт.

6

336039A1

BUSHING

1шт.

1542877C1

SEAL KIT,57.2mm Rod

Incl. 7, 8; Not Serviced Separately, Order Seal Kit 381101A1

1шт.

7

NSS

NOT SOLD SEPARAT

Seal, Rod; Order Seal Kit 381101A1

1шт.

8

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal; Order Seal Kit 381101A1

1шт.

9

238-5240

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

1шт.

10

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

11

384244A1

BACK-UP RING

1шт.

12

381103A1

ROD

57,2 mm dia

1шт.

381097A1

PLUNGER

Piston Assy.; Incl. 13 - 16

1шт.

13

381098A1

PISTON ROD/GLAND

1шт.

14

381099A1

SEAL,101.45mm ID x 106.17mm OD x 6.96mm Thk

1шт.

15

281411A1

SEALING RING,Square, 5.28mm Thk x 90.73mm ID

1шт.

16

381100A1

RING

1шт.

17

86982441

SPECIAL BOLT,Hex, 12, 1 1/4 x 3"

Incl. 18

1шт.

18

NSS

NOT SOLD SEPARAT

Washer

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

20

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

2шт.

381101A1

SEAL KIT

Seal; Incl. 5 - 8, 10, 15, 16; Includes 381102A1 Expandable Seal Ring For Service Replacement Of Ref 14 Seal; Also Includes 238-5241, 3-7/8 x 4-1/8 Inch, O-Ring And G109299 Backup Ring Not Used In This Application

1шт.
