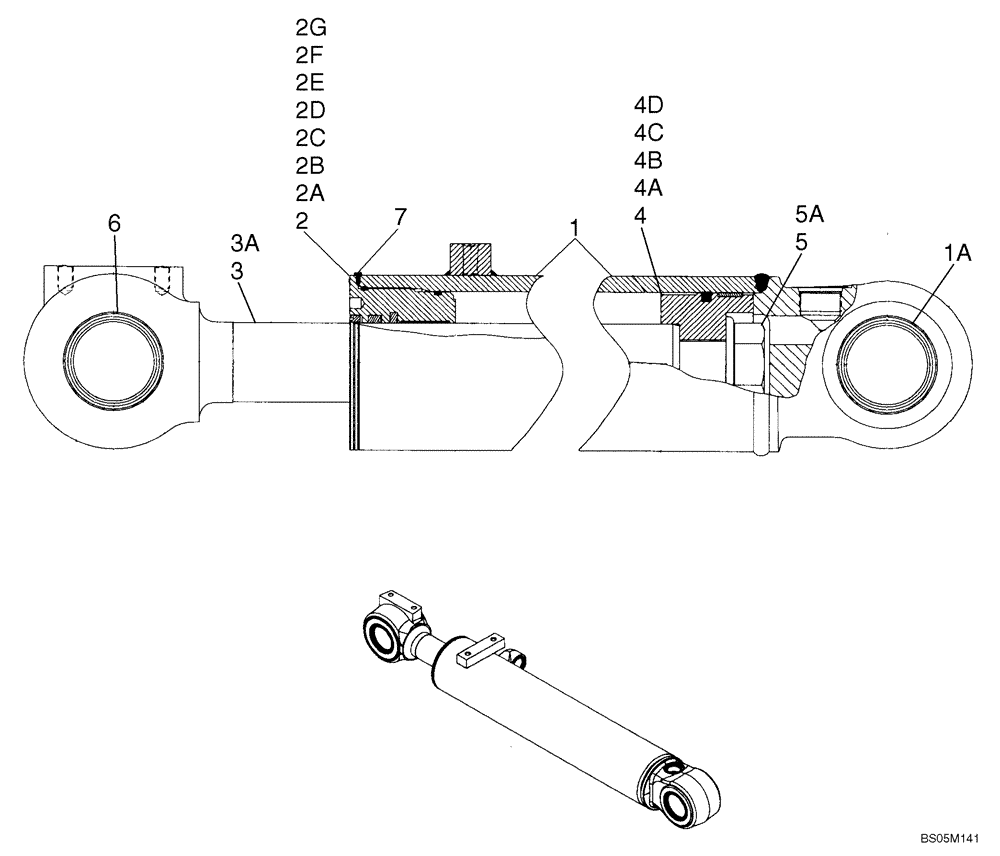

Запчасти Case 621D (08-23) - CYLINDER ASSY - LOADER BUCKET (Z BAR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

Z-BAR LOADER; IF USED

1шт.

87366688

CYLINDER ASSY.

114 ID x 529 mm strk; Bucket; Incl. 1 - 20

1шт.

87366689R

REMAN-HYD CYLINDER

621D (S/N JEE0135501 & AFTER) ( 1/03 - ) , Reman for new P/N 87366688

1шт.

87366689C

CORE-HYD CYLINDER

Return Number

1шт.

1

339525A1

BARREL,127mm Bore Dia

Incl. 1A

1шт.

87434293

SEAL KIT

KIT, SEALS; Incl. Refs. 2B-2G, 4B, 4D, And Expandable Seal 1986753C1

1шт.

1a

87625613

BUSHING,70.14mm ID x 82.65mm OD x 36mm L

Replaces 339521A1

2шт.

2

339512A1

GLAND

Assembly; Incl. 2A - 2G

1шт.

2a

339511A1

GLAND

Packing

1шт.

2b

1542881C1

SEAL KIT

Incl. Rod And Buffer Seals

1шт.

2c

D95148

WIPER SEAL

1шт.

2d

336042A1

BUSHING

Bearing; Dia. 76.20

1шт.

2e

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

1шт.

2f

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

2g

238-5248

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

1шт.

3

339520A1

ROD ASSY.

76.2 Dia; Incl. 3A

1шт.

3a

339521A1

BUSHING

69.8 Dia.

2шт.

4

339510A1

PISTON

Incl. 4A - 4

1шт.

4a

339508A1

PISTON,126.33mm Bore, 76.31mm Rod, 72.4mm W

127.0 Dia Cylinder; 76.2 Dia Rod

1шт.

4b

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

127.0 Dia.

1шт.

4c

336030A1

SEAL,123.8mm ID x 128.52mm OD x 6.96mm Thk

127.0 Dia.

1шт.

4d

336046A1

RING

Wear

1шт.

5

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. 5A

1шт.

5a

NSS

NOT SOLD SEPARAT

Washer

1шт.

6

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

4шт.

7

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Self Tapping

1шт.
