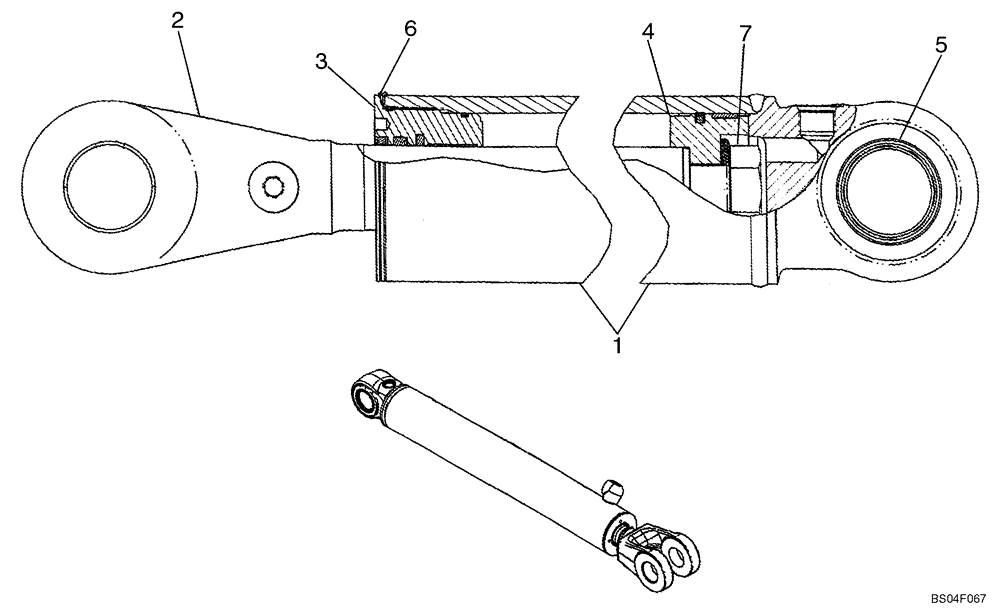

Запчасти Case 621D (08-22A) - CYLINDER ASSY - LOADER LIFT (08) - HYDRAULICS

REF

INSTRUCTION

Z-BAR, XR, XT LOADER LIFT

1шт.

87318060

LIFT CYLINDER,Double Acting, 63.5mm Rod, 787.6mm Stroke

114.3 ID x 787.6 mm strk; Lift; Power Tan; Incl. 1 - 9

2шт.

87366691

CYLINDER ASSY.,Double Acting, 63.5mm Rod, 787.6mm Stroke

CYLINDER ASSY Lift; Components the same as 87318060

2шт.

87434291

SEAL KIT

KIT, SEALS; Incl. Refs. 3B-3G, 4C, 4D, And Expandable Seal 361000A1

1шт.

1

394357A1

TUBE,114.15 mm ID, 139.9 mm OD

Incl. 1A

1шт.

1a

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

Replaces 336388A1

2шт.

2

87318062

PISTON ROD,63.5mm OD x 1085.7mm L

63.5 Diameter

1шт.

3

336379A1

GLAND

Cylinder; Incl. 3A -3G

1шт.

3a

336378A1

GLAND

1шт.

3b

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

1шт.

3c

1542879C1

SEAL KIT,63.5mm Rod x 88.9mm Bore

Seal; Incl.

1шт.

NSS

NOT SOLD SEPARAT

Seal, Buffer Seal

1шт.

NSS

NOT SOLD SEPARAT

Seal, Rod

1шт.

3d

336041A1

BUSHING

1шт.

3e

G109300

RING,113.46mm ID x 118.97mm OD x 1.17mm Thk

1шт.

3f

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

1шт.

3g

238-5244

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

1шт.

4

341971A1

PISTON

Incl. 4A-4D

1шт.

4a

341968A1

PISTON

1шт.

4b

336029A1

SEAL,115.75mm ID x 111.02mm OD x 6.96mm Thk

1шт.

4c

G101995

SEALING RING,Square, 5.28mm Thk x 100.71mm ID

SEALRING

1шт.

4d

336045A1

RING

1шт.

5

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

6

86642312

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Self Tapping

1шт.

7

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

Incl. 7A

1шт.

7a

NSS

NOT SOLD SEPARAT

Washer

1шт.

8

360982A1

SEAL KIT

Seal; Incl. 3B-3G, 4C, 4D; Includes 361000A1 Expandable Seal Ring For Service Replacement Of Ref. 4B Piston Seal

1шт.
