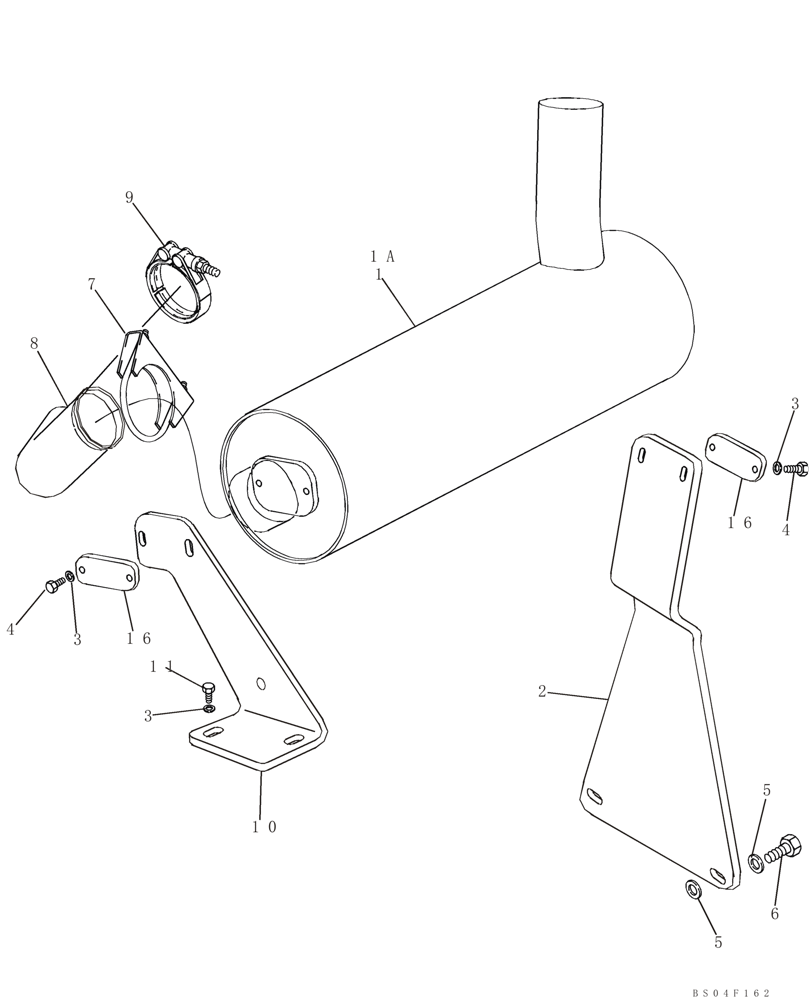

Запчасти Case 621D (02-12) - MUFFLER - EXHAUST SYSTEM - IF USED (02) - ENGINE

REF

INSTRUCTION

NO LONGER AVAILABE; SEE FIGURES 02-13, 02-13A

1шт.

1

388283A1

MUFFLER

Standard

1шт.

1a

373393A1

MUFFLER

Spark Arrester

1шт.

2

86991866

BRACKET

1шт.

3

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

Use With Spark Arrester

3шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

6

827-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 10.9

2шт.

7

299456A1

CLAMP,80.5mm ID

1шт.

8

86983216

TUBE,76.20 mm OD

1шт.

9

J903652

CLAMP

1шт.

10

87409307

BRACKET

Replaced By 87428705

1шт.

10

87428705

BRACKET

Not Illustrated; Replaced 87409307

1шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

3шт.

13

408195A1

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST Not Illustrated

1шт.

14

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

Not Illustrated

4шт.

15

832-10406

NUT,M6 x 1, Cl 8

Not Illustrated

4шт.

16

87425898

PLATE

Muffler

2шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
