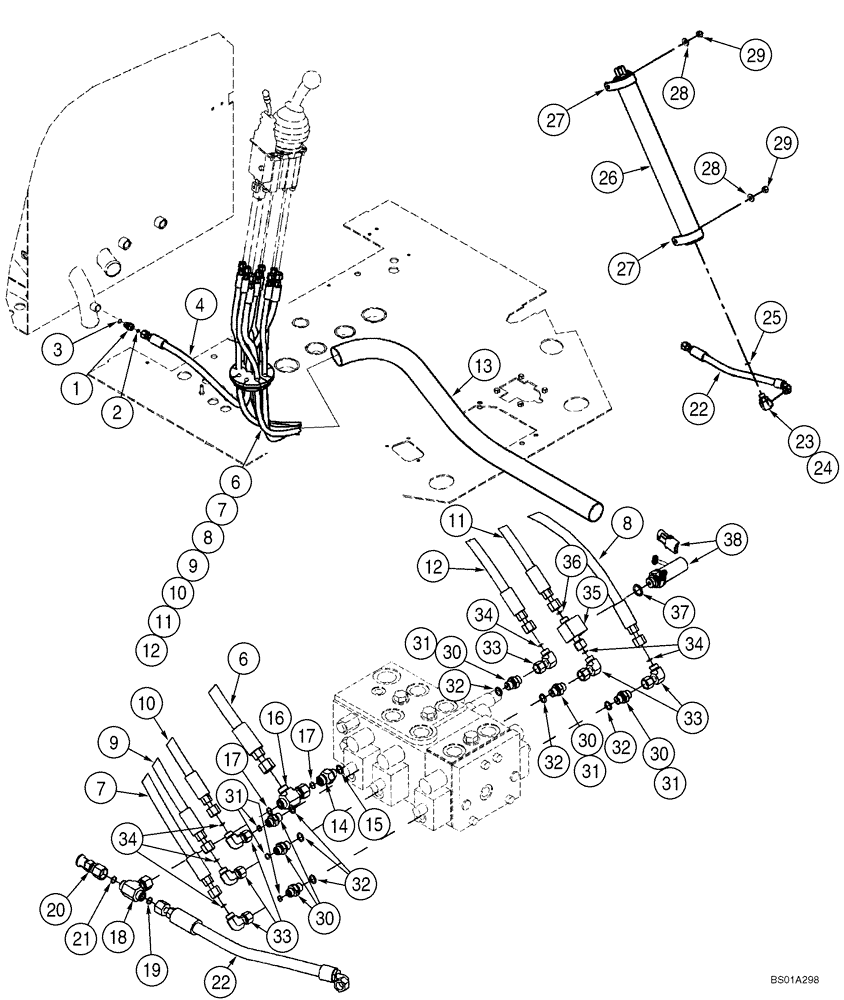

Запчасти Case 621D (08-18) - HYDRAULICS - LOADER CONTROL, REMOTE (08) - HYDRAULICS

REF

INSTRUCTION

HOSE GROMMET TO THREE SPOOL VALVE

1шт.

1

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 2, 3

1шт.

2

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

4

392059A1

HOSE ASSY.

1294 mm lg; Hydraulic Tank

1шт.

5

380912A1

GROMMET

2шт.

6

392058A1

HOSE ASSY.

2453 mm lg; Pressure

1шт.

7

366517A1

HOSE ASSY.

2627 mm lg; Third Spool; Left Hand

1шт.

8

366518A1

HOSE ASSY.

2707 mm lg; Third Spool; Right Hand

1шт.

9

366430A1

HOSE ASSY.

2492 mm lg; Lift; Left Hand

1шт.

10

366514A1

HOSE ASSY.

2471 mm lg; Tilt; Left Hand

1шт.

11

366513A1

HOSE ASSY.

2557 mm lg; Lift; Right Hand

1шт.

12

366515A1

HOSE ASSY.

2547 mm lg; Tilt; Right Hand

1шт.

13

401526A1

HOSE PROTECTION,60mm ID x 1200mm L

1шт.

14

391859A1

VALVE, CHECK

Incl. 15

1шт.

15

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

16

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 17

1шт.

17

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

2шт.

18

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 19

1шт.

19

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

20

190119A1

COUPLING

Incl. 21

1шт.

21

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

22

392060A2

HOSE ASSY.

446 mm lg; Accumulator

1шт.

23

700-368

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 24, 25

1шт.

24

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

25

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

26

8605664

ACCUMULATOR

Component Parts Not Serviced Separately

1шт.

27

391868A1

CLAMP

2шт.

28

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

2шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

30

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

M8 fc sl x 14 orb; Incl. 31, 32

4шт.

31

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

32

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

33

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

M6 fc sl x swl; Incl. 34

4шт.

34

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

35

397547A1

FITTING

Fitting Pressure Switch; Used With XT And Ride Control Only; Incl. 36, 37

1шт.

36

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal; Used With XT And Ride Control Only

1шт.

37

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

Used with XT and Ride Control Only

1шт.

38

446183A1

PRESSURE SWITCH

Used With XT And Ride Control Only

1шт.
