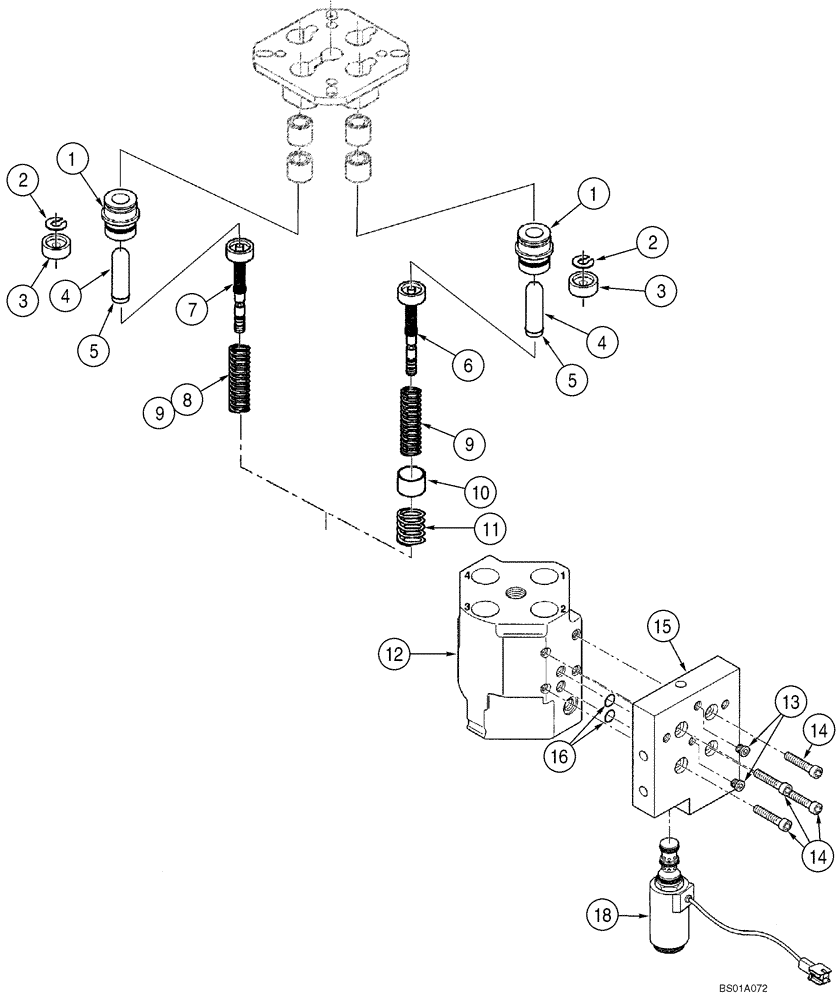

Запчасти Case 621D (08-17D) - VALVE ASSY - JOYSTICK CONTROL (08) - HYDRAULICS

414391A1

JOYSTICK

Joystick; Replaced By 8603083 Control Valve; Incl. 1 - 18; Incl. Figure 08-15B; Incl. Kit 8604526

1шт.

8603083

JOYSTICK

Joystick; Replaces 414391A1 Control Valve; Incl. 1 - 9; 12 - 18; Incl. Figure 08-15B; Incl. Kit 87432563

1шт.

8604521

KIT

Plunger; Used In All Ports; Incl. 1 - 5

4шт.

1

NSS

NOT SOLD SEPARAT

Guide

2шт.

2

NSS

NOT SOLD SEPARAT

Washer

2шт.

3

NSS

NOT SOLD SEPARAT

Retainer

2шт.

4

NSS

NOT SOLD SEPARAT

Plunger

2шт.

5

NSS

NOT SOLD SEPARAT

Ring, Snap

2шт.

6

8604522

REGULATOR

Use In Port 1

1шт.

7

8604523

REGULATOR

Use In Ports 2, 3, 4

3шт.

8

8604524

SPRING

Set of Two; Use In Ports 2, 4

1шт.

9

8604525

SPRING

Set Of Two; Use In Ports 1, 3

1шт.

87432563

SEAL KIT

Springs; Prefeeling; For Ports 1, 3; Use With 8603083 Control Valve; Not Illustrated

1шт.

8604526

KIT

Sensor; Use In Port 1; Incl. 10, 11; Use With 414391A1 Control Valve

1шт.

10

NSS

NOT SOLD SEPARAT

Socket

1шт.

11

NSS

NOT SOLD SEPARAT

Spring

1шт.

12

NSS

NOT SOLD SEPARAT

Housing

1шт.

13

8604550

REPAIR KIT

Plug; Set Of Two; If Used

1шт.

8604540

REPAIR KIT

Flange; Incl. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

M6 x 25, Screw

4шт.

15

NSS

NOT SOLD SEPARAT

Flange

1шт.

16

NSS

NOT SOLD SEPARAT

1,5 x 11, O-Ring

2шт.

17

8604541

SEAL KIT,11mm ID x 1.5mm Width

O-Ring; Set Of Two

1шт.

18

8604542

SOLENOID VALVE,Joystick Control, 24v

24V; Solenoid

1шт.
