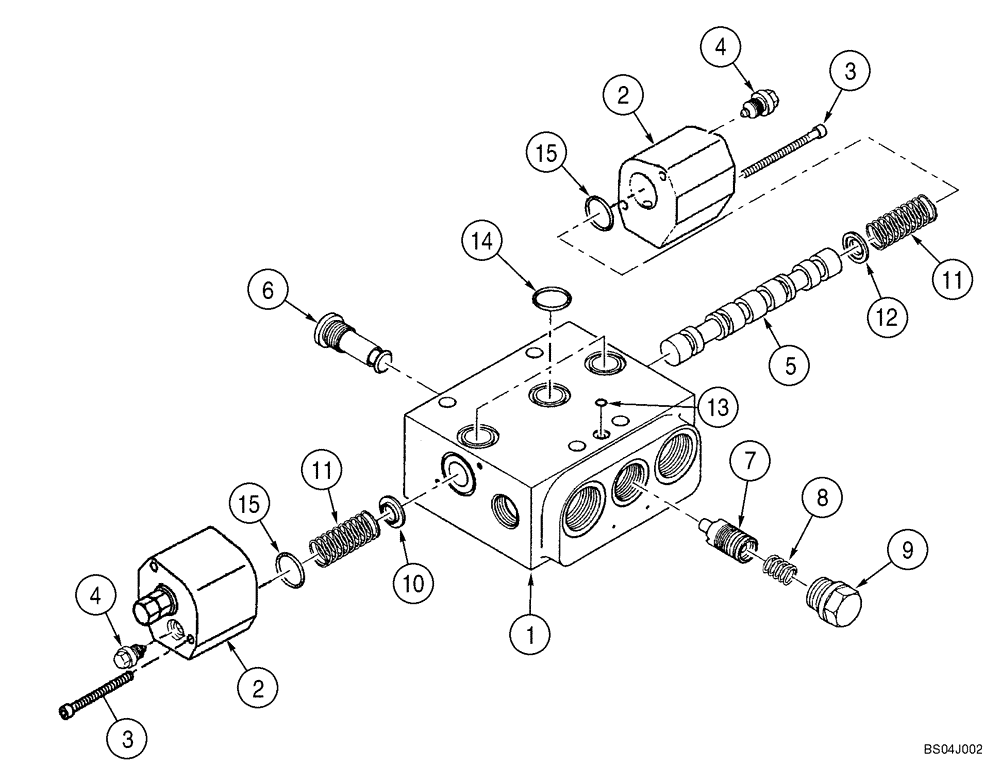

Запчасти Case 621D (08-14) - VALVE ASSY - LOADER CONTROL (08) - HYDRAULICS

REF

INSTRUCTION

FOR THREE SPOOL AND FOUR SPOOL VALVES

1шт.

8604565

BLOCK

Spool Assembly; Incl. 1 - 15

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

8604576

COVER

1шт.

3

NSS

NOT SOLD SEPARAT

M5 x 55; 10.9; Screw

1шт.

4

8604781

VALVE

Throttle Check

1шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

6

8604758

VALVE, CHECK

1шт.

7

8604579

VALVE

1шт.

8

8604580

SPRING

Compression

1шт.

9

8604581

SCREW,Lock, M6

Locking

1шт.

10

8604582

RETAINER

Spring

1шт.

11

8604583

SPRING

Compression

1шт.

12

8604577

RETAINER

Spring

1шт.

8604784

SEAL KIT

Seal; Incl. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

2шт.
