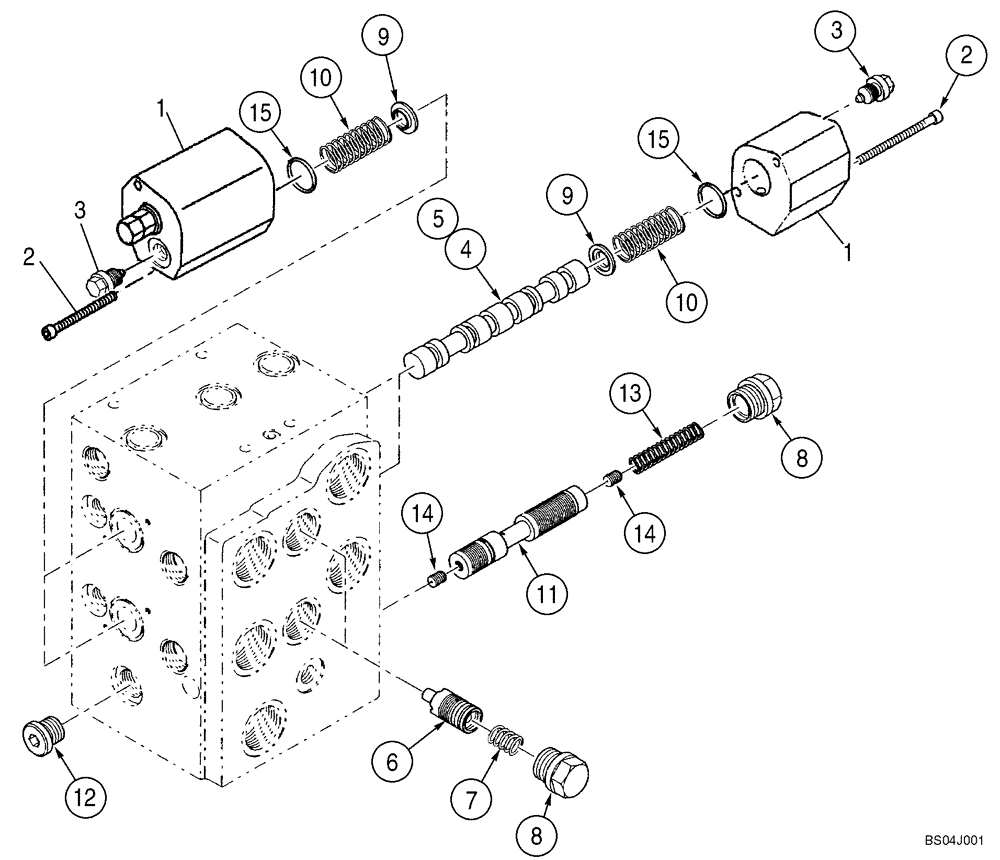

Запчасти Case 621D (08-13) - VALVE ASSY - PISTON AXIS (08) - HYDRAULICS

1

8604576

COVER

4-8шт.

8605576

COVER

For Mounting Bolts Order 87657975

1шт.

8605577

COVER

For Mounting Bolts Order 14301521

1шт.

2

NSS

NOT SOLD SEPARAT

M5 x 55; 10.9; Screw

8шт.

3

8604781

VALVE

Throttle Check

4шт.

4

NSS

NOT SOLD SEPARAT

Piston

1-2шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

6

8604579

VALVE

2шт.

7

8604580

SPRING

Compression

2шт.

8

8604581

SCREW,Lock, M6

Locking

3шт.

9

8604582

RETAINER

Spring

4шт.

10

8604583

SPRING

Compression

4шт.

11

8604584

PISTON

1шт.

12

8604271

PLUG

M22 - 1,5

1шт.

13

8604586

SPRING

Compression

1шт.

14

8604587

JET

Valve

2шт.

8604778

SEAL KIT

Seal; Incl. 15

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

16

8604597

JET

Valve; Not Illustrated

1шт.
