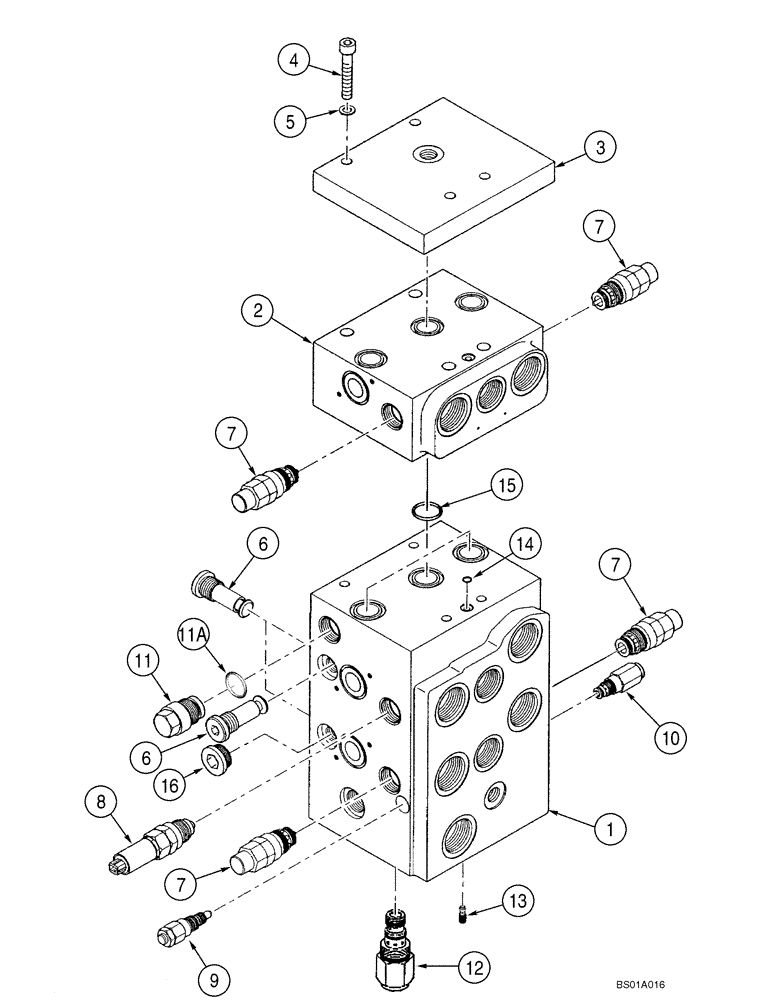

Запчасти Case 621D (08-11B) - VALVE ASSY - LOADER CONTROL, THREE SPOOL - XT (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER; IF USED; ALSO SEE FIGURE 08-16

1шт.

87411113

CONTROL VALVE

Three Spool; Incl. 1 - 16; Also Includes Figure(s) 08-13, 08-14

1шт.

87307988

HYDRAULIC VALVE

Replaces 87411113; See Figure 08-16 - 16B

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

8604565

BLOCK

Spool; See Figure 08-14

1шт.

3

8604564

PLATE

1шт.

4

827-8100

BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9

4шт.

5

892-11008

LOCK WASHER,8mm ID

4шт.

6

8604758

VALVE, CHECK

4шт.

7

8604763

VALVE

Anti-Cavitation; Includes Spool, (3) O-Rings, Thrust Ring, Nut and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604787 Seal Kit, Ref 7A; Incl. 7A

4шт.

7a

8604787

SEAL KIT

Seal; Not Illustrated

1шт.

8

8604766

VALVE

Anti-Cavitation; Includes (3) O-Rings, Spool Seal and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604790 Seal Kit, Ref 8A; Incl. 8A

1шт.

8a

8604790

SEAL KIT

Seal; Not Illustrated

1шт.

9

8604769

VALVE

Presure Relief; Includes (4) Thrust Rings, (3) O-Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604793 Seal Kit, Ref 9A; Incl. 9A

2шт.

9a

8604793

SEAL KIT

Seal; Not Illustrated

1шт.

10

8604772

VALVE

Flow Limiting; Includes (2) O-Rings, (1) Thrust Ring and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604796 Seal Kit, Ref 10A; Incl. 10A

1шт.

10a

8604796

SEAL KIT

Seal; Not Illustrated

1шт.

11

8604572

INSERT

Pilot Pressure; Incl. 11A

1шт.

11a

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

12

8604775

VALVE

Flow Limiting; Includes (1) Seal, (3) O-Rings, (3) Thrust Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, order 8604799 Seal Kit, Ref 12A; Incl. 12A

1шт.

12a

8604799

SEAL KIT

Seal; Not Illustrated

1шт.

13

87362307

CHECK VALVE

Replaces 8604574

1шт.

8604778

SEAL KIT

Seal; Incl. 14, 15

1шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

8шт.

15

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

16

8605270

PLUG

M18; Includes O-Ring

1шт.

17

8605576

COVER

Not Illustrated

1шт.

18

8605577

COVER

Not Illustrated

1шт.
