Запчасти Case 621D (08-10A) - VALVE ASSY - LOADER CONTROL, TWO SPOOL - Z-BAR (08) - HYDRAULICS

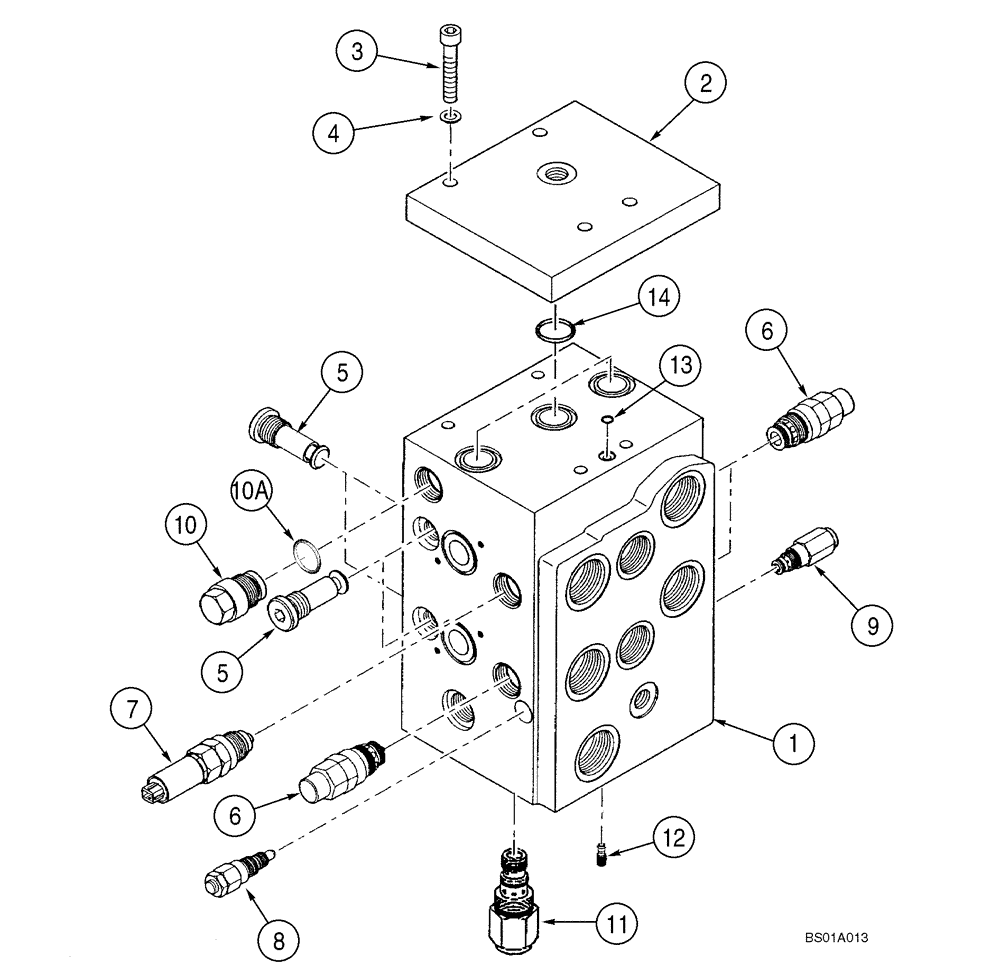

Схема запчастей Case 621D - (08-10A) - VALVE ASSY - LOADER CONTROL, TWO SPOOL - Z-BAR (08) - HYDRAULICS
7
13
10
8
10a
1
5
3
12
14
11
5
4
6
2
6
9

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

Z-BAR LOADER; IF USED; ALSO SEE 08-15

1шт.

87411109

CONTROL VALVE

Incl. 1 - 14; Also Includes Figure 08-10C, 13

1шт.

87307982

HYDRAULIC VALVE

Z-Bar Loader; If Used; See Fig 08-15 - 15A

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

8604564

PLATE

M6

1шт.

Valve

1шт.

3

NSS

NOT SOLD SEPARAT

M8 x 35; 10.9; Screw

4шт.

4

892-11008

LOCK WASHER,8mm ID

4шт.

5

8604758

VALVE, CHECK

4шт.

6

8604763

VALVE

Anticavitation; Includes Spool, (3) O-Rings, Thrust Ring, Nut and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604787 Seal Kit, Ref 6A; Incl. 6A

2шт.

6a

8604787

SEAL KIT

Seal; Not Illustrated

1шт.

7

8604766

VALVE

Anticavitation; Includes (3) O-Rings, Spool Seal and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604790 Seal Kit, Ref 7A; Incl. 7A

1шт.

7a

8604790

SEAL KIT

Seal; Not Illustrated

1шт.

8

8604769

VALVE

Pressure Relief; Includes (4) Thrust Rings, (3) O-Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604793 Seal Kit, Ref 8A; Incl. 8A

2шт.

8a

8604793

SEAL KIT

Seal; Not Illustrated

1шт.

9

8604772

VALVE

Flow Limiting; Includes (2) O-Rings, (1) Thrust Ring and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604796 Seal Kit, Ref 9A; Incl. 9A

1шт.

9a

8604796

SEAL KIT

Seal; Not Illustrated

1шт.

10

8604572

INSERT

Pilot Pressure; Incl. 10A

1шт.

10a

238-6119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

11

8604775

VALVE

Flow Limiting; Includes (1) Seal, (3) O-Rings, (3) Thrust Rings and Seal Kit; Component Parts Not Serviced Separately; For Service Of External Seals, Order 8604799 Seal Kit, Ref 11A; Incl. 11A

1шт.

11a

8604799

SEAL KIT

Seal; Not Illustrated

1шт.

12

87362307

CHECK VALVE

Replaces 8604574

1шт.

8604778

SEAL KIT

Seal; Incl. 13, 14

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

8шт.

14

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

8604937

SEAL KIT

Locking Screw

1шт.

15

8605576

COVER

Not Illustrated

1шт.

16

8605577

COVER

Not Illustrated

1шт.

Выбрано товаров: 28
