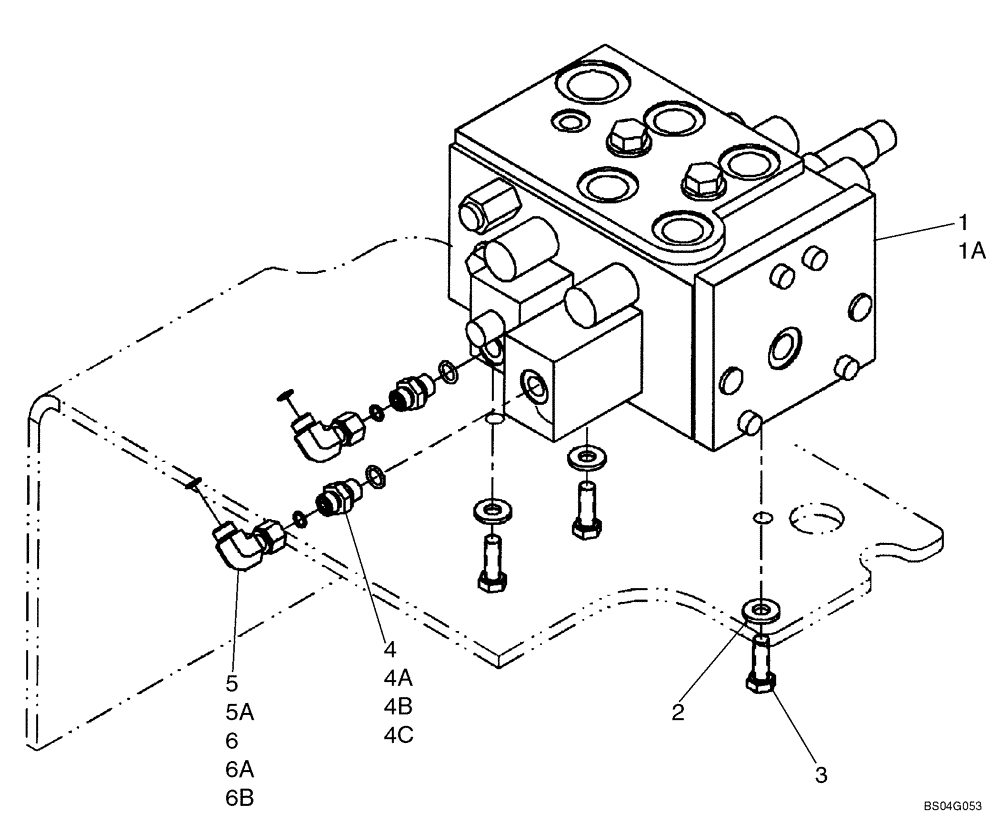

Запчасти Case 621D (08-10) - VALVE, CONTROL - MOUNTING, TWO SPOOL - Z-BAR/XT (08) - HYDRAULICS

REF

INSTRUCTION

TWO SPOOL

1шт.

1

87411109

CONTROL VALVE

Z-Bar Loader; If Used; See Fig 08-10A, 13

1шт.

1

87307982

HYDRAULIC VALVE

Z-Bar Loader; If Used; See Fig 08-15, 15A

1шт.

1a

87411112

CONTROL VALVE

XT Loader; If Used; See Fig 08-10B, 13

1шт.

1a

87307986

HYDRAULIC VALVE

XT Loader; If Used; See Fig 08-16, 16A, Subs to 87680515 At Serial break, Serial Range: N8F205035-N8F205034

1шт.

2

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

3шт.

4

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

STRAIGHT CONNECTOR 8 mm ORFS x M14 ORB; Incl. 4A, 4B

2-1шт.

4a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

4b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4c

REF

INSTRUCTION

NOT USED IN THIS APPLICATION FOR XT MODELS

1шт.

5

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

90 deg swvl; 6 mm; Incl. 5A

2-1шт.

5a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

REF

INSTRUCTION

Used On XT Loader

1шт.

6

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

90 deg adj, 8 mm ORFS x M41 ORB; Incl. 6A, 6B

1шт.

6a

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.
