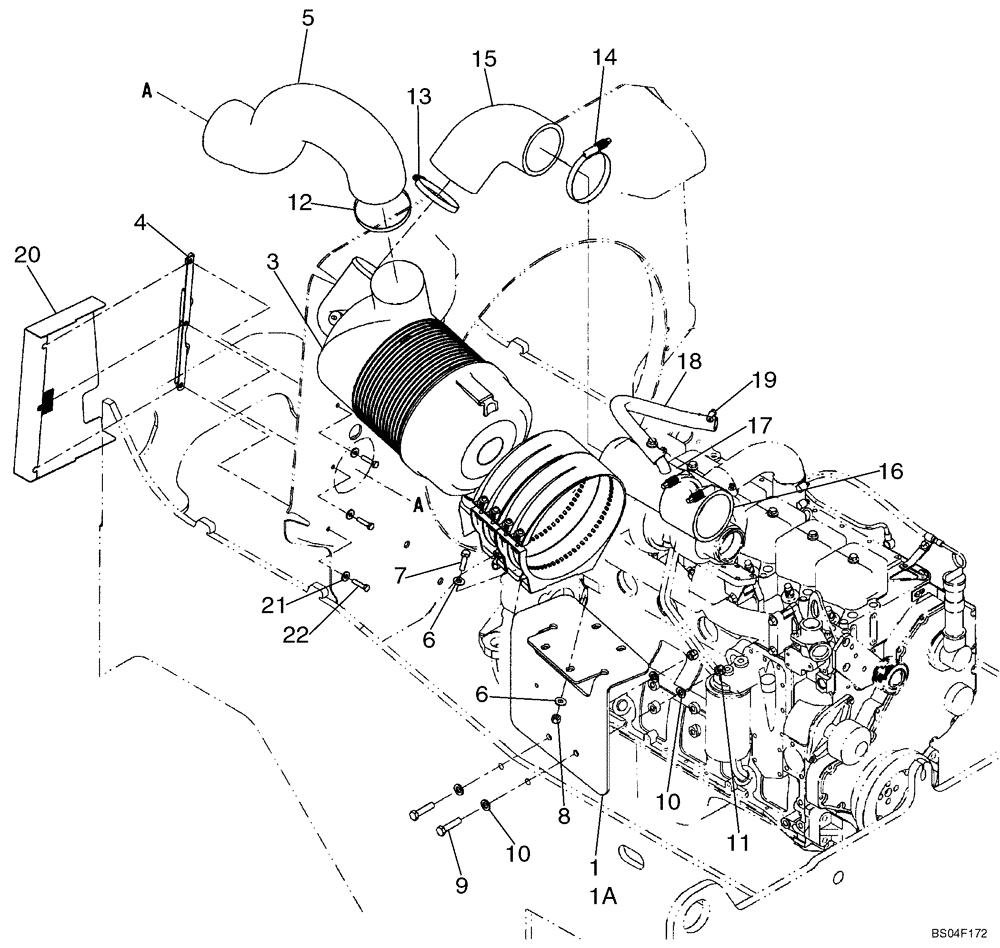

Запчасти Case 621D (02-10) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

8602956

BRACKET

Air Cleaner; If Used; Not Illustrated

1шт.

1a

87451676

SUPPORT

Air Cleaner; If Used

1шт.

2

390319A1

BRACKET

2шт.

3

390318A1

CLEANER ASSY.

See Figure 02-11A

1шт.

4

87433573

ANGLE

Inlet Screen

1шт.

5

397116A1

AIR INTAKE TUBE

1шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

8шт.

7

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

4шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

9

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

10

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

11

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

12

214-1480

HOSE CLAMP,#80, 4.62" - 5.5", Type F Worm

1шт.

13

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

14

L127771

CLAMP,107.95mm - 130.18mm

3шт.

15

87400957

AIR INTAKE TUBE,101.5 mm OD

1шт.

16

8602478

INTAKE AIR HOSE,101.60 mm ID x 100.00 mm, SAE J200

Air Cleaner

1шт.

17

8605492

AIR INTAKE TUBE

CCV Valve; Replaced 87400959

1шт.

18

8604749

HOSE,22.22 mm ID x 480.00 mm, SAE 30R2

Crankcase Vent; No Longer Used In This Application; See Figure 02-10A

1шт.

19

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

No Longer Used In This Application; See Figure 02-10A

2шт.

20

87433574

SCREEN

Inlet

1шт.

21

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2.5 mm

8шт.

22

627-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9, Full Thd

3шт.
