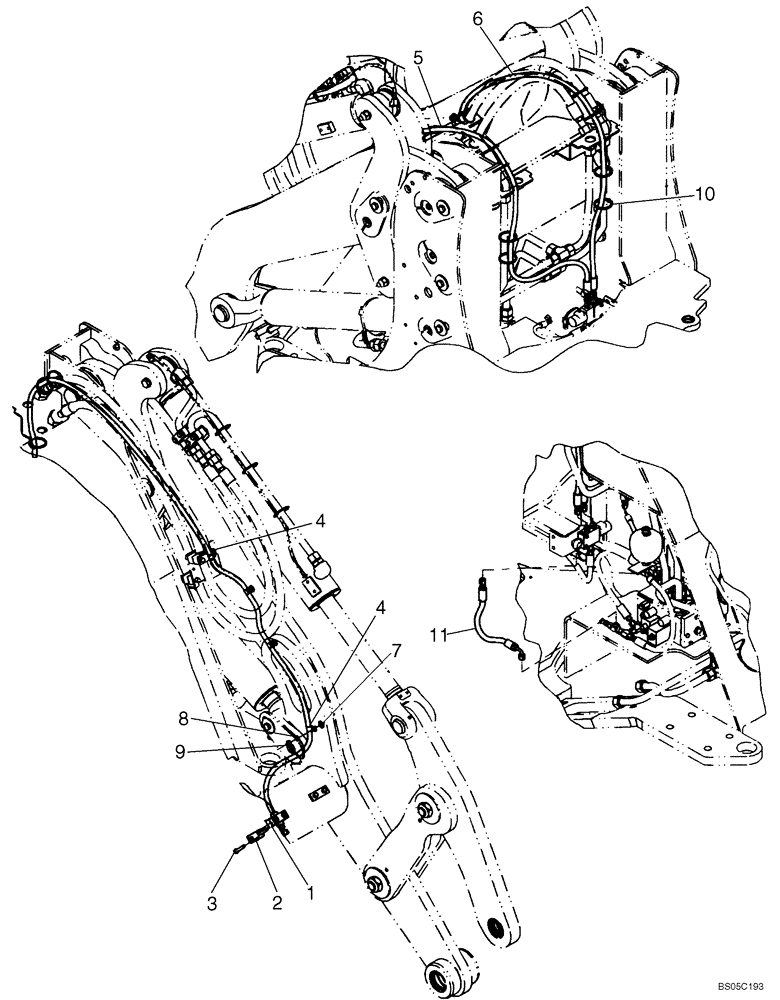

Запчасти Case 621D (08-08D) - HYDRAULICS - COUPLER (XT LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER

1шт.

1

379374A1

BLOCK

Mounting

2шт.

2

367658A1

PLATE

Clamp Cover

2шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

(15.9 mm)

8шт.

5

87448666

HOSE ASSY.

XT Coupler; Left; 353mm ( 14 in )

1шт.

6

87448665

HOSE ASSY.

XT Coupler; Right; 323 (12-3/4 in )

1шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3mm

6шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

10

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

8шт.

11

393126A1

HOSE ASSY.

Coupler Pressure; 483mm ( 19 in )

1шт.

3

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

Two Spool

4шт.
