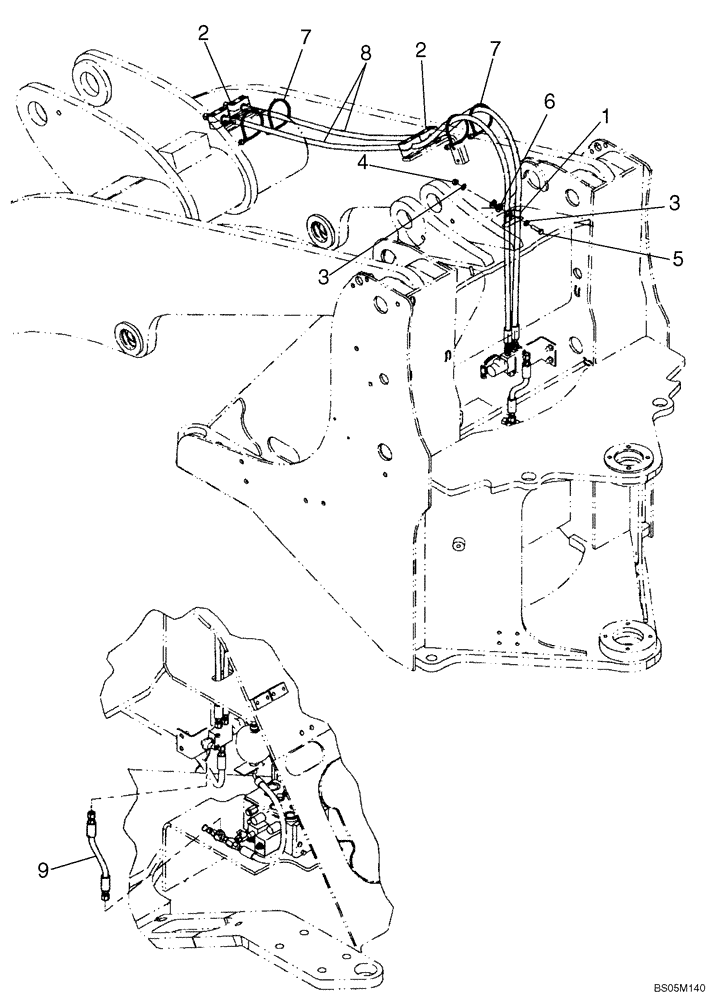

Запчасти Case 621D (08-08B) - HYDRAULICS - COUPLER (XR LOADER) (08) - HYDRAULICS

REF

INSTRUCTION

XR LOADER

1шт.

1

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

(15.9mm; M12 Bolt)

2шт.

2

379374A1

BLOCK

Mounting

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

6

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

2шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

4шт.

8

87405436

HOSE

XR Coupler; 2229 mm ( 87-3/4 in )

2шт.

9

87403985

HOSE

Coupler Pressure; 308mm (12-1/8 in )

1шт.
