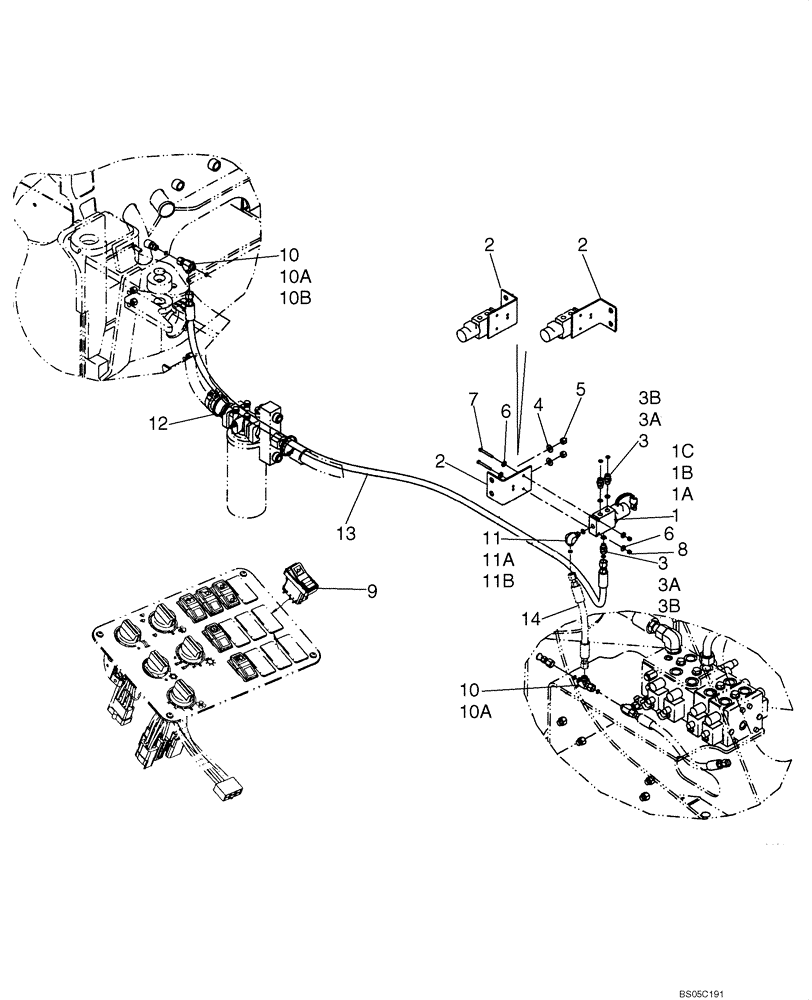

Запчасти Case 621D (08-07A) - HYDRAULICS - COUPLER LOCKING (08) - HYDRAULICS

8605217

SOLENOID VALVE

Coupler Locking; Incl. 1 - 1C

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

1a

NSS

NOT SOLD SEPARAT

Coil

1шт.

1b

8605216

SOLENOID VALVE

Incl. 1C

1шт.

1c

124639A1

SEAL KIT

Cartridge; Not Illustrated

1шт.

2

87404018

BRACKET

If Used

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 3A, 3B

3шт.

3a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

3b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

364444A2

SWITCH

Pin Engage

1шт.

10

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl. 10A

2шт.

10a

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

3шт.

11

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl. 11A, 11B

1шт.

11a

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

11b

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

Face Seal

1шт.

12

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

2шт.

13

87403984

HOSE,9.53mm ID x 2206mm L, SAE 100R1

2206 mm ( 86 7/8 in ); Coupler Tank

1шт.

14

REF

INSTRUCTION

FOR CORRECT HOSE SEE COUPLER FIGURES FOR Z-BAR, XR AND XT

1шт.
