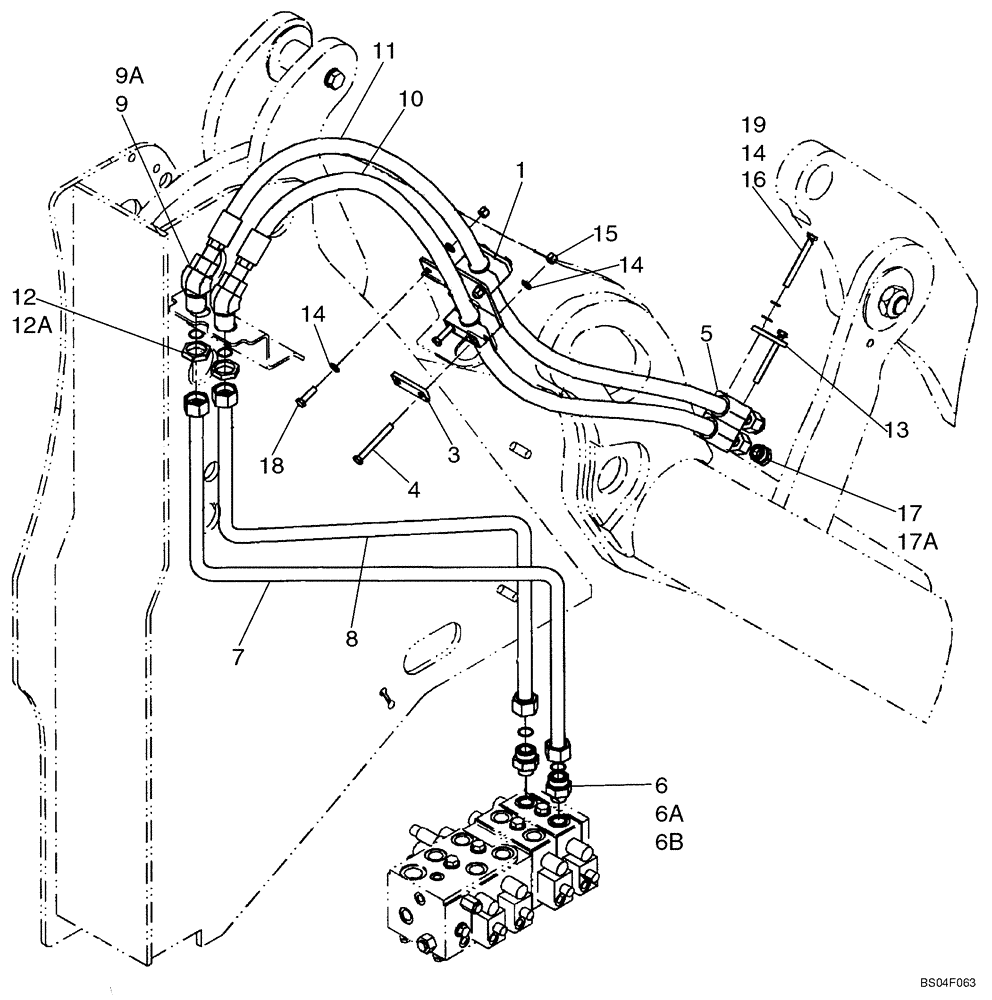

Запчасти Case 621D (08-06E) - HYDRAULICS - LOADER AUXILIARY (XT LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER

1шт.

REF

INSTRUCTION

FOUR SPOOL

1шт.

1

87452747

CLAMP,33.4mm ID

Tube Mounting

2шт.

2

87444440

BRACKET

Accessory Hose Mounting

1шт.

3

8500858

PLATE

Clamp Cover

2шт.

4

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

M10 x 90; 10.9

4шт.

5

372453A1

BLOCK

Tube Mounting

2шт.

6

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 6A, 6B

2шт.

6a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

6b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

7

87452609

HYD TUBE,25 mm OD x 928, 695 mm L

Right Hand; Fourth Spool

1шт.

8

87445816

HYD TUBE,25 mm OD x 848, 590 mm L

Left Hand; Fourth Spool

1шт.

9

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Elbow ORFS; 45deg BHD; 25mm Or 1 Inch; Incl 9A

2шт.

9a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

10

87304933

HOSE ASSY.

XT Accessory; Lower

1шт.

11

87304930

FLEXIBLE HOSE

XT Accessory; Upper

1шт.

12

701-908

BHD LOCK NUT,1-7/16" - 12

ORFS BHD Lock 25mm Or 1 Inch; Incl. 12A

2шт.

12a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

13

367658A1

PLATE

Clamp Cover

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

6шт.

16

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

2шт.

17

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl. 17A

2шт.

17a

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

18

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

18

892-11010

LOCK WASHER,M10

2шт.
