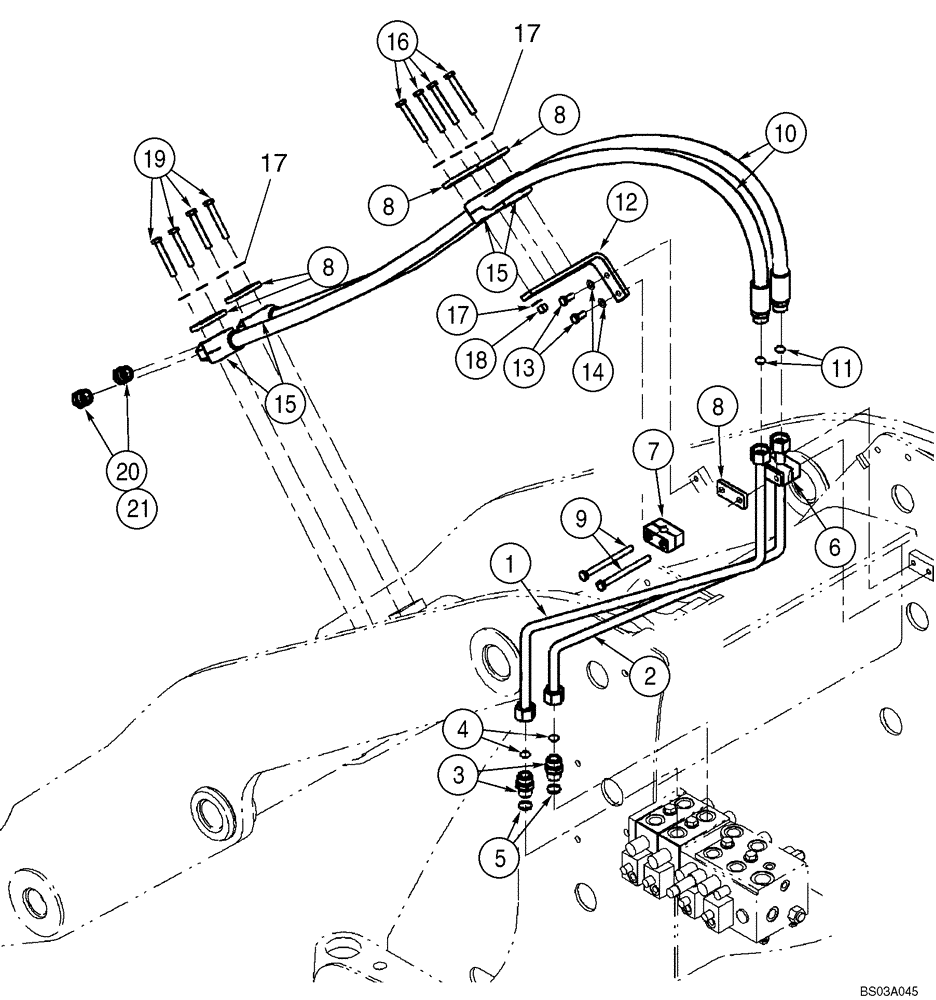

Запчасти Case 621D (08-06A) - HYDRAULICS - LOADER AUXILIARY (XT LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER

1шт.

REF

INSTRUCTION

THREE SPOOL

1шт.

1

393041A1

TUBE,25.4 mm OD

Left Hand

1шт.

2

392999A1

TUBE,25.4 mm OD

Right Hand

1шт.

3

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 4, 5

2шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

5

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6

367658A1

PLATE

1шт.

7

367489A1

BLOCK

2шт.

8

367658A1

PLATE

5шт.

9

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

2шт.

10

393001A1

HOSE ASSY.

2283 mm (89-7/8 in); Incl. 11

2шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

12

373040A2

BRACKET

1шт.

13

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

15

372453A1

BLOCK

Mounting

4шт.

16

827-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

4шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

20

701-914

PLUG,Hex, 1-3/16" - 12 ORFS

Incl. 21

2шт.

21

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

2шт.

19

827-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 10.9

4шт.
