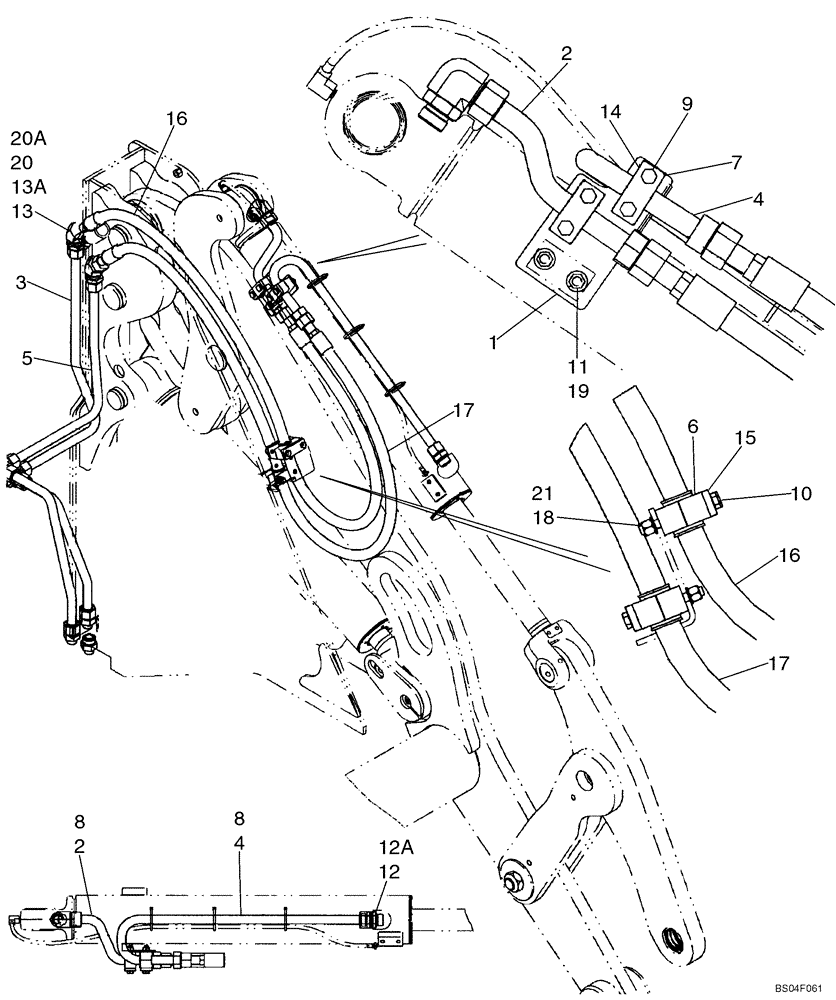

Запчасти Case 621D (08-05D) - HYDRAULICS - LOADER BUCKET (XT LOADER) - LEFT SIDE - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER BUCKET

1шт.

1

87447892

BRACKET

Tilt Tubes Left Side

1шт.

2

87447897

HYD TUBE,25mm OD x 259, 125mm L

Tilt Base Left Side

1шт.

3

87452605

HYD TUBE,22mm ID x 25mm OD 567mm L

Tilt Head Left Side

1шт.

4

87445804

HYD TUBE,22mm ID x 25mm OD x 697mm L

Tilt Rod End Left Side

1шт.

5

87445800

HYD TUBE,22mm ID x 25mm OD x 437 x 355mm L

Tilt Rod Left Side

1шт.

6

87452747

CLAMP,33.4mm ID

Tube Mounting

2шт.

7

367489A1

BLOCK

Mounting

2шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

9

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

10

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

4шт.

11

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

12

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 12A

1шт.

12a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

13

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl 13A

2шт.

13a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

14

367658A1

PLATE

Clamp Cover

2шт.

15

8500858

PLATE

Clamp Cover

2шт.

16

87304928

HOSE ASSY.,19.05mm ID x 2273mm L, SAE 100R12

Tilt Base; 2273mm ( 89-1/2 in )

1шт.

17

87304926

HOSE ASSY.,19.05mm ID x 2252mm L, SAE 100R12

Tilt Rod; 2252mm ( 88-3/4 in )

1шт.

18

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

20

701-908

BHD LOCK NUT,1-7/16" - 12

Incl. 20A

2шт.

20a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

21

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
