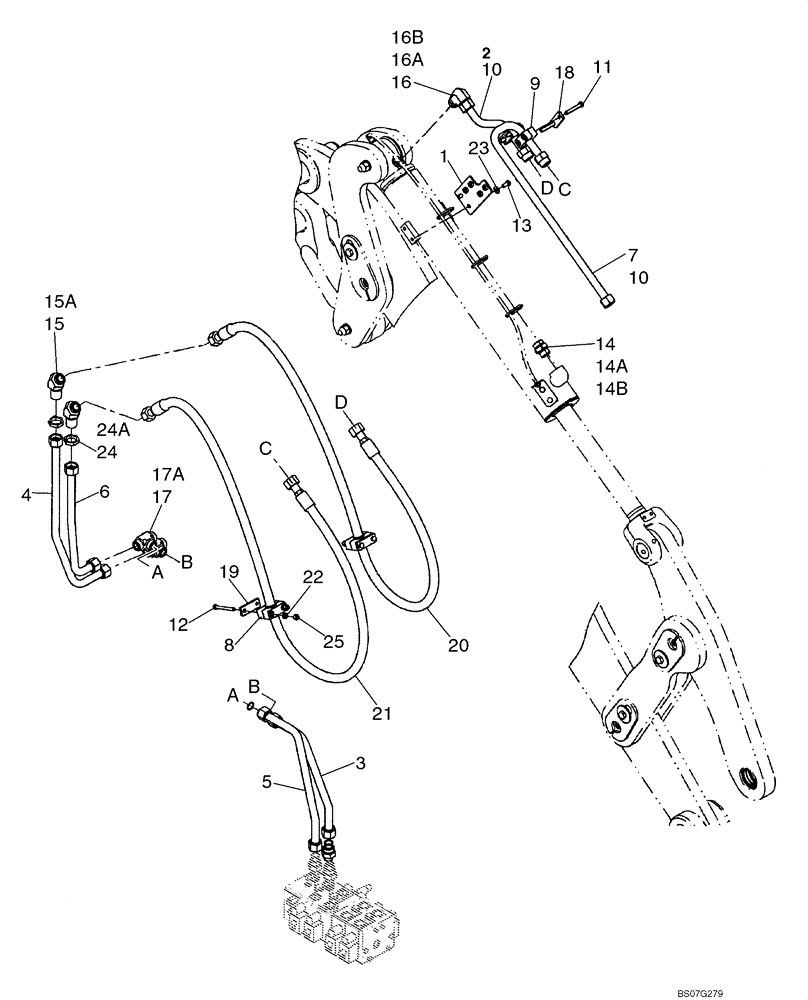

Запчасти Case 621D (08-05C) - HYDRAULICS - LOADER BUCKET (XT LOADER) - RIGHT SIDE - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

XT LOADER BUCKET

1шт.

1

87447893

BRACKET

Tilt Tubes Right Side

1шт.

2

87447895

HYD TUBE,25mm OD x 259, 125mm L

Tilt Base Right Side

1шт.

3

389349A1

TUBE,22mm ID x 25mm OD x 360mm L

Tilt Head End Right Side

1шт.

4

87452603

HYD TUBE,25mm OD

Tilt Head Right Side

1шт.

5

389351A1

TUBE,25.4mm OD, 410, 255mm Length

Tilt Rod End Right Side

1шт.

6

87445798

HYD TUBE,22mm ID x 25mm OD x 437mm L

Tilt Rod End Right Side

1шт.

7

87445806

HYD TUBE,22mm ID x 25mm OD x 697mm L

Tilt Rod Right Right Side

1шт.

8

87452747

CLAMP,33.4mm ID

Tube Mounting

2шт.

9

367489A1

BLOCK

Mounting

2шт.

10

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

11

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

4шт.

12

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

M10 x 90; 10.9

4шт.

13

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

14

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

25mm ORFS x M33 ORB; Incl. 14A, 14B

1шт.

14a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

14b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

29.6 ID x 23.9; Boss End

1шт.

15

701-366

ELBOW,45 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Elbow ORFS; 45deg BHD; 25mm Or 1 Inch; Incl 15A

2шт.

15a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

16

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Adj., 25mm ORFS x M33 ORB; Incl. 16A, 16B

2шт.

16a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

16b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

29.6 ID x 23.9; Boss End

1шт.

17

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl. 17A

2шт.

17a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

18

367658A1

PLATE

Clamp Cover

2шт.

19

8500858

PLATE

Clamp Cover

2шт.

20

87304928

HOSE ASSY.,19.05mm ID x 2273mm L, SAE 100R12

Tilt Base; 2273mm ( 89-1/2 in )

1шт.

21

87304926

HOSE ASSY.,19.05mm ID x 2252mm L, SAE 100R12

Tilt Rod; 2252mm ( 88-3/4 in )

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

24

701-908

BHD LOCK NUT,1-7/16" - 12

ORFS BHD Lock 25mm Or 1 Inch; Incl. 24A

2шт.

24a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
