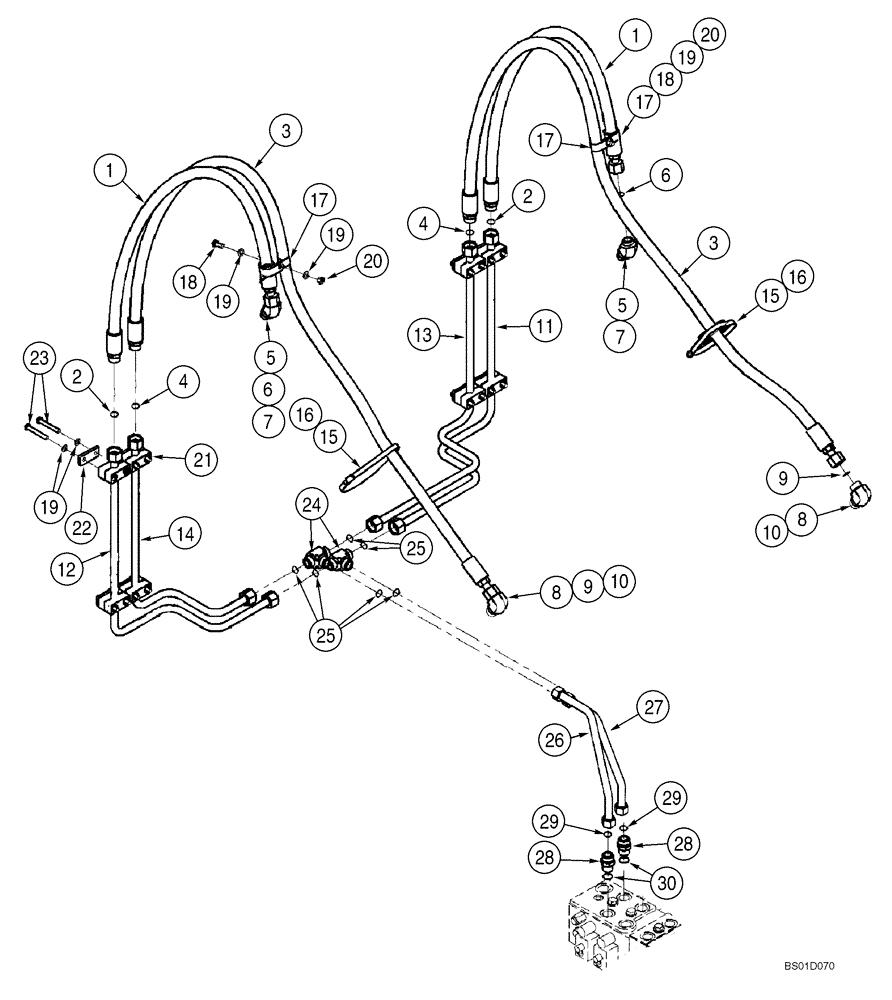

Запчасти Case 621D (08-05B) - HYDRAULICS - LOADER BUCKET (XT LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

LOADER BUCKET

1шт.

REF

INSTRUCTION

XT LOADER

1шт.

1

372605A1

HOSE ASSY.

1310 mm (51-9/16 in); Closed End; Incl. 2

2шт.

2

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

3

372606A2

HOSE ASSY.

2346 mm (92-3/8 in); Rod End; Incl. 4

2шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

5

700-387

ELBOW,45 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

M20 fc sl x 2,7 orb; Incl. 6, 7

2шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

1шт.

8

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 9, 10

2шт.

9

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

11

372486A1

TUBE,25.4 mm OD, 600, 558 mm Length

Closed End; Left Hand

1шт.

12

372484A1

TUBE,25.4 mm OD, 600, 385 mm Length

Closed End; Right Hand

1шт.

13

372490A1

TUBE,25.4 mm OD, 550, 526 mm Length

Rod End; Left Hand

1шт.

14

372488A1

TUBE,25.4 mm OD, 550, 257 mm Length

Rod End; Right Hand

1шт.

15

367533A1

CLAMP

2шт.

16

214-1492

HOSE CLAMP,#92, 5.38" - 6.25", Type F Worm

2шт.

17

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

4шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

20шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

21

367489A1

BLOCK

Mounting

8шт.

22

367658A1

PLATE

8шт.

23

827-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 10.9

16шт.

24

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl. 25

2шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

26

389351A1

TUBE,25.4mm OD, 410, 255mm Length

Closed End

1шт.

27

389349A1

TUBE,22mm ID x 25mm OD x 360mm L

Rod End

1шт.

28

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 29, 30

2шт.

29

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

30

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.
