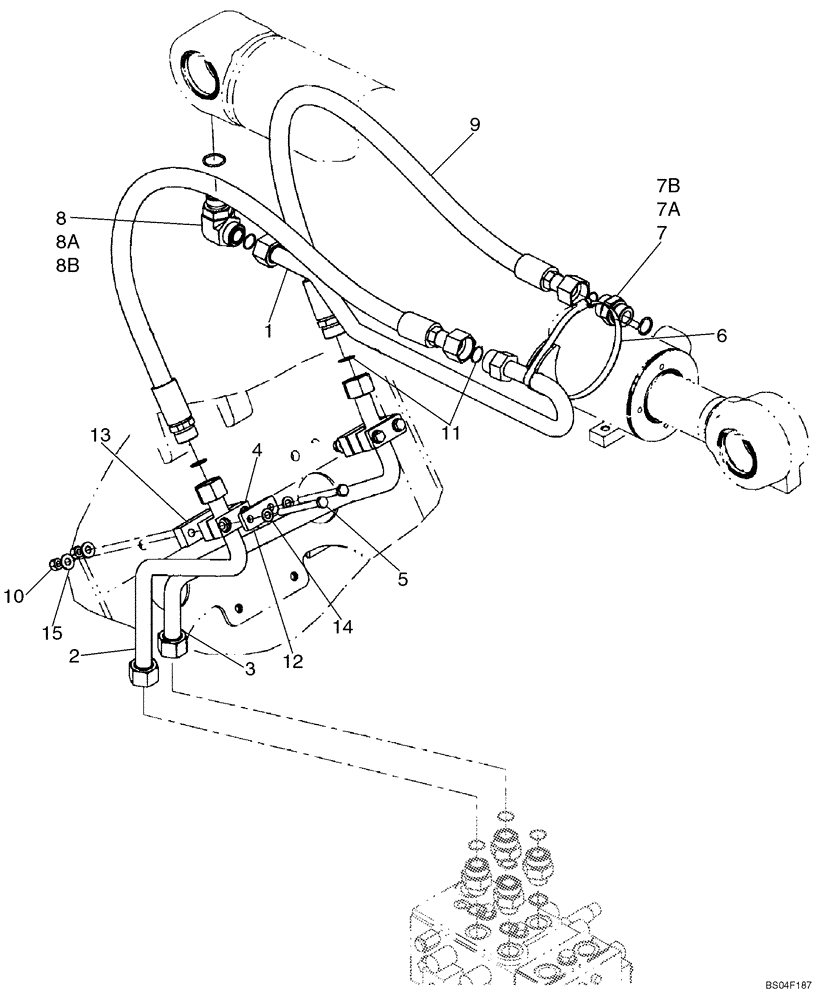

Запчасти Case 621D (08-05A) - HYDRAULICS - LOADER BUCKET (Z BAR LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

TIER II LOADER BUCKET; Z-BAR LOADER

1шт.

1

8605367

TUBE,25.40 mm OD

Tilt Cylinder

1шт.

2

389049A1

TUBE,25.4 mm OD, 446, 252 mm Length

Tilt Head End

1шт.

3

8605369

TUBE,25.40 mm OD

Rod End

1шт.

4

367489A1

BLOCK

Tube Mounting

2шт.

5

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

6

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

7

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

25mm ORFS x M33 ORB; Incl. 7A, 7B

1шт.

7a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

7b

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 8A, 8B

1шт.

8a

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8b

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

9

389161A1

HOSE ASSY.

Tilt Cylinder;

2шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

12

367658A1

PLATE

2шт.

13

87403155

SPACER

Tube Mounting

2шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.
