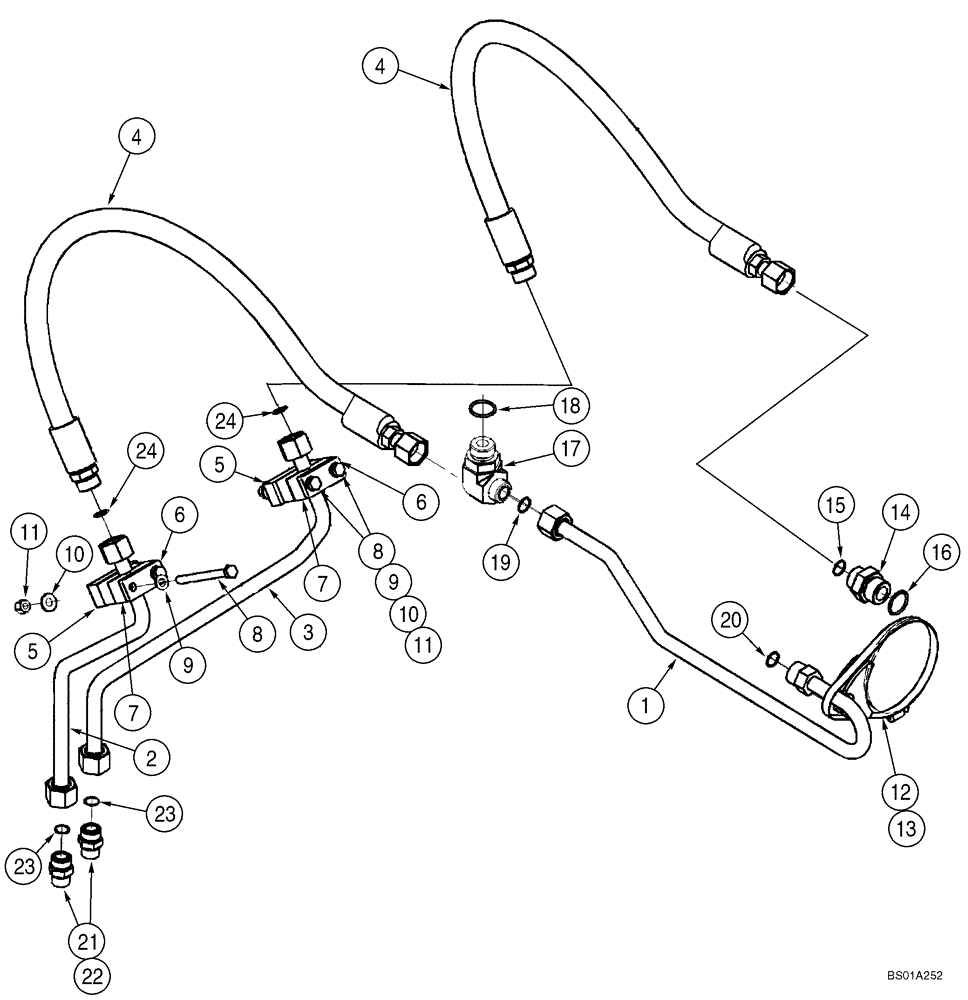

Запчасти Case 621D (08-05) - HYDRAULICS - LOADER BUCKET (Z BAR LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

LOADER BUCKET

1шт.

REF

INSTRUCTION

Z-BAR LOADER

1шт.

1

389005A1

TUBE

Tilt Cylinder

1шт.

2

389049A1

TUBE,25.4 mm OD, 446, 252 mm Length

Closed End

1шт.

3

389051A1

TUBE,25.4 mm OD, 446, 223 mm Length

Rod End

1шт.

4

389161A1

HOSE ASSY.

1161 mm (45-11/16 in); Tilt Cylinder

2шт.

5

367489A1

BLOCK

Mounting

2шт.

6

367658A1

PLATE

2шт.

7

87403155

SPACER

Replaced By 87324906

2шт.

7

87324906

SPACER

Spacer

2шт.

8

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

12

391133A1

CLAMP

Saddle

1шт.

13

214-14104

HOSE CLAMP,155.45mm - 177.8mm

1шт.

14

700-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

1-7/16 fc sl x 33 orb; Incl. 15, 16

1шт.

15

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

16

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

17

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl. 18, 19

1шт.

18

637-64296

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

21

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 22, 23

2шт.

22

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

23

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

24

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.
