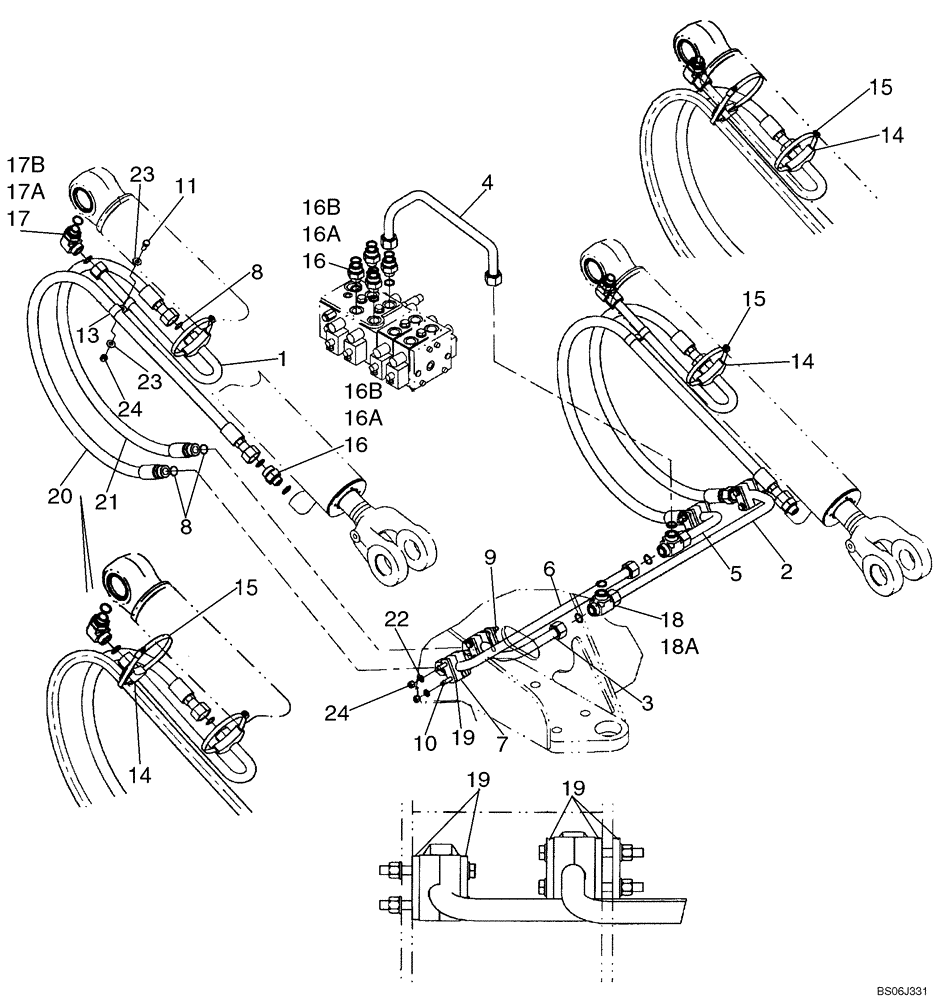

Запчасти Case 621D (08-04C) - HYDRAULICS - LOADER LIFT (XT LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

LOADER LIFT, XT-LOADER; USED ON UNITS PRODUCED AFTER 17 FEB 2004

1шт.

1

87448548

HYD TUBE,22mm ID x 25mm OD x 465mm L

Lift Cylinder

2шт.

2

8606092

TUBE,22mm ID x 25mm OD x 659mm L

Left Hand; Head End

1шт.

3

8606094

TUBE,25.40 mm OD

Right Hand; Head End

1шт.

3

87389172

HYD TUBE,19.4 mm ID x 25.40 mm OD x 222, 161.5 mm L

Right Hand; Head End; Replaces 8606094

1шт.

4

8606096

TUBE,25.40mm OD

Rod End; Used On Models Without Ride Control

1шт.

5

8606098

TUBE,25.40 mm OD x 162, 142 mm L

Rod End; Left Hand

1шт.

6

8606100

TUBE,25.40mm OD x 110, 659mm L

Rod End; Right Hand

1шт.

7

367489A1

BLOCK

Mounting

4шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

6шт.

9

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

10

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

11

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

If Used

2шт.

12

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

If Used

2шт.

13

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

If Used

2шт.

14

391133A1

CLAMP

2-4шт.

15

214-1488

HOSE CLAMP,130.05mm - 152.4mm

2-4шт.

15

214-14100

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

If Used

4шт.

16

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 16A, 16B

6шт.

16a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

16b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

17

700-313

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 17A, 17B

2шт.

17a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

17b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

18

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl. 18A

2шт.

18a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

19

367658A1

PLATE

Clamp Cover

10шт.

20

87448550

HOSE ASSY.

1802 mm ( 70 7/8 in); Lift Cylinder

2шт.

21

86983387

HOSE ASSY.

1320 mm ( 52 in ); Lift Cylinder

2шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

If Used

4шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

8-10шт.
