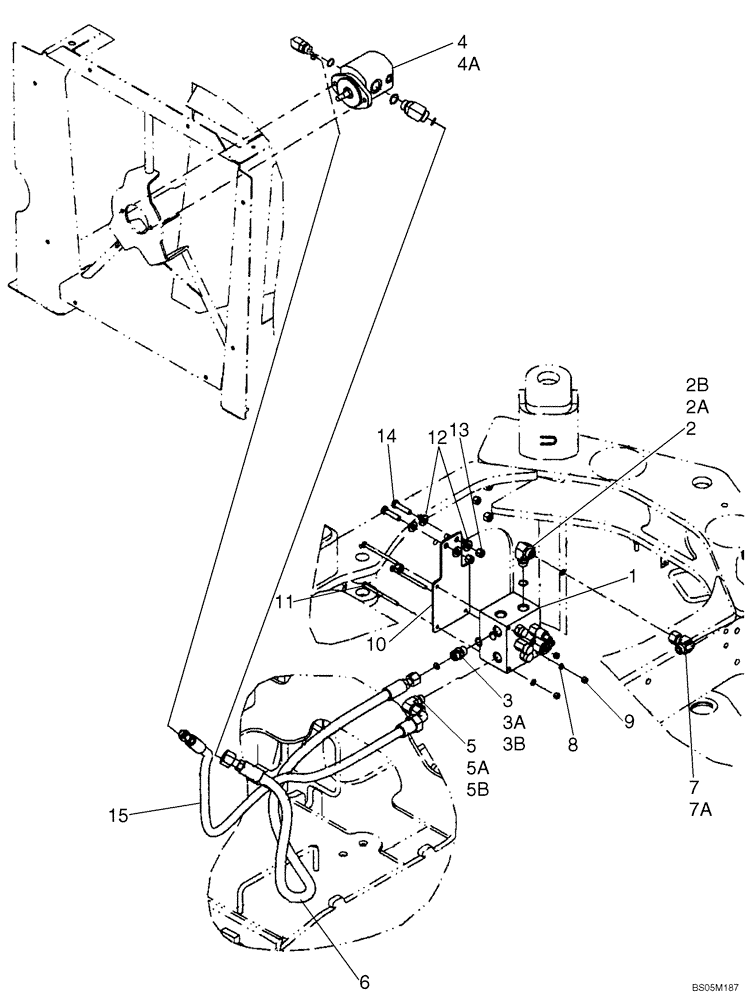

Запчасти Case 621D (02-08A) - COOLING SYSTEM - MOTOR, DRIVE (REVERSIBLE FAN DRIVE) (02) - ENGINE

REF

INSTRUCTION

IF USED

1шт.

1

8605147

VALVE

Pressure Relief; See Figure 02-09; Replaces 445495A1 Valve Used In Production

1шт.

2

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl.2A, 2B

1шт.

2a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

2b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 3A, 3B

1шт.

3a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

3b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

4

87426773

HYDRAULIC MOTOR,GEAR, 14 CC

Fan Drive; Includes 4A; M14 Drain Port On Side

1шт.

87426773R

REMAN-HYD MOTOR

621D (S/N JEE0135501 & After) (1/03-)

1шт.

87426773C

CORE-MOTOR HYDRAULIC

Return number

1шт.

4a

87426795

SEAL KIT

1шт.

5

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 5A, 5B

2шт.

5a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

5b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

6

376179A2

HOSE ASSY.

1935 mm ( 76-1/4 IN ); Reverse

1шт.

7

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl. 7A

1шт.

7a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

10

407750A1

BRACKET

Valve Mounting

1шт.

11

827-8120

BOLT,Hex, M8 x 1.25 x 120mm, Cl 10.9

3шт.

12

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

13

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

14

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

15

440832A1

HOSE ASSY.

1626,5 mm; Forward

1шт.
