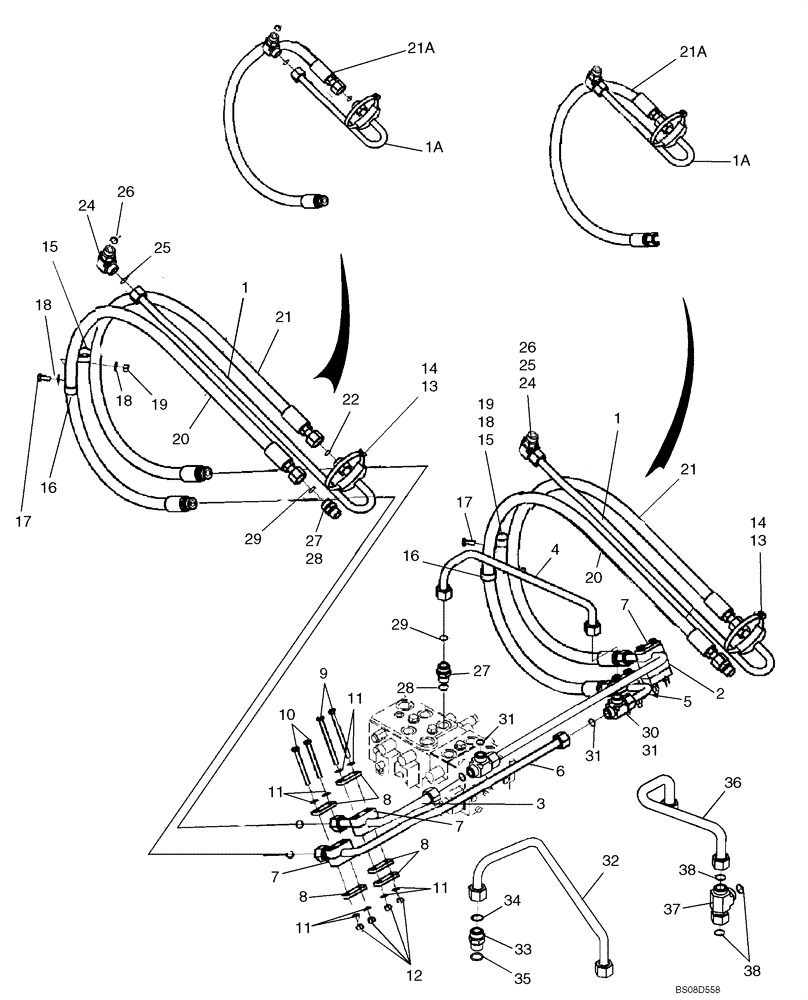

Запчасти Case 621D (08-04B) - HYDRAULICS - LOADER LIFT (XT LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

LOADER LIFT

1шт.

REF

INSTRUCTION

XT-LOADER

1шт.

1

364839A1

TUBE,25.4 mm OD, 880, 64 mm Length

Lift Cylinder; 880 mm (34 - 41/64 in) From Tube End To Bend; On Models Produced Prior to 14 Jan 2002

2шт.

1a

86983366

TUBE,25.40 mm OD x 385, 64 mm L

ASSY. Lift Cylinder; 385 mm (15 - 5/32 in) From Tube End to Bend; Introduced Into Production Models 14 Jan 2002

2шт.

2

364755A1

TUBE,25.4 mm OD, 648, 185 mm Length

Left Hand

1шт.

3

364758A1

TUBE,25.4 mm OD, 185, 172 mm Length

Right Hand

1шт.

4

418210A1

TUBE

Rod End

1шт.

5

418111A1

TUBE

Rod End; Left Hand

1шт.

6

418113A1

TUBE

Rod End; Right Hand

1шт.

7

367489A1

BLOCK

Mounting

4шт.

8

367658A1

PLATE

10шт.

9

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

4шт.

10

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

13

391133A1

CLAMP

2шт.

14

214-1488

HOSE CLAMP,130.05mm - 152.4mm

2шт.

15

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

16

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

2шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

18

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

19

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

20

418695A1

HOSE ASSY.

1860 mm ( 73-1/4 in); Lift Cylinder; Incl. 20A

2шт.

20a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

21

372359A1

HOSE ASSY.

Lift Cylinder; 1760 mm (69-5/16 in); Incl. 20A; On Models Produced Prior to 14 Jan 2002

2шт.

22

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

21a

86983387

HOSE ASSY.

Lift Cylinder; 1320 mm (51 - 31/32 in); Incl. 20A; Introduced Into Production Models 14 Jan 2002

2шт.

24

370522A1

ELBOW

1-7/16 fc sl x 27 orb; Incl. 25, 26

2шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

26

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

28

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

27

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 28, 29

3шт.

29

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

31

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

30

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl. 31

2шт.

32

388817A1

TUBE

Closed End

1шт.

34

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

33

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 32, 33

1шт.

35

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

36

393806A1

TUBE

Closed End; Models With Ride Control

1шт.

37

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Models With Ride Control; Incl. 38

1шт.

38

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.
