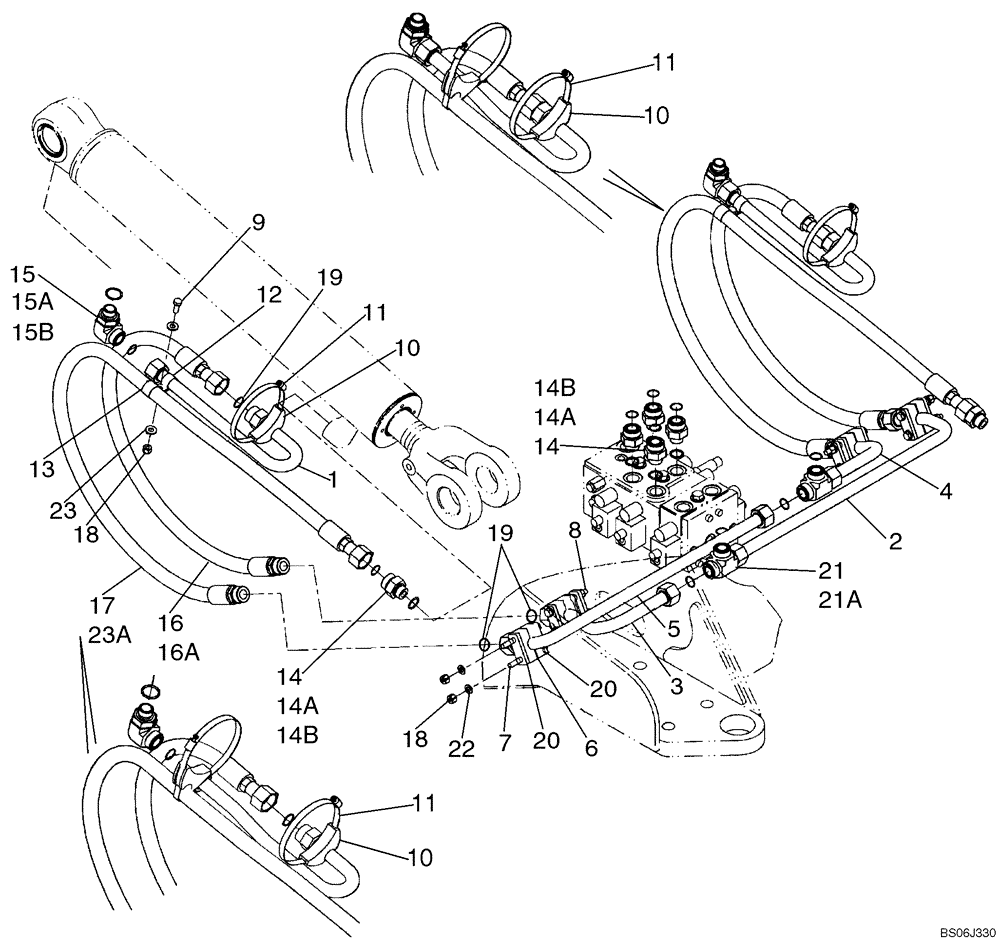

Запчасти Case 621D (08-04A) - HYDRAULICS - LOADER LIFT (Z BAR LOADER)- IF USED (08) - HYDRAULICS

REF

INSTRUCTION

TIER II LOADER LIFT; Z-BAR LOADER

1шт.

1

86983366

TUBE,25.40 mm OD x 385, 64 mm L

Lift Cylinder

2шт.

2

8606092

TUBE,22mm ID x 25mm OD x 659mm L

Head; Left Hand

1шт.

3

8606094

TUBE,25.40 mm OD

Head; Right Hand

1шт.

3

87389172

HYD TUBE,19.4 mm ID x 25.40 mm OD x 222, 161.5 mm L

TUBE ASSY. Head; Right Hand; Replaces 8606094

1шт.

4

8606098

TUBE,25.40 mm OD x 162, 142 mm L

Rod End; Left Hand

1шт.

5

8606100

TUBE,25.40mm OD x 110, 659mm L

Rod End; Right Hand

1шт.

6

367489A1

BLOCK

Tube Mounting

4шт.

7

827-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

8

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

10

391133A1

CLAMP

Hose

2-4шт.

11

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

2-4шт.

11

214-14100

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

If Used

4шт.

12

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

3/8 in, If Used

2шт.

13

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

2шт.

14

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 14A, 14B

1шт.

14a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

14b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

15

87010650

ELBOW,90 Degree, 1 7/16"-12 ORFS x M27 x 2 ORB

90 Deg; Adj; 25mm ORFS x M27 ORB; Incl. 15A, 15B

2шт.

15a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

15b

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

16

86983386

FLEXIBLE HOSE,19.05mm ID x 1145mm L

1145 mm; Lift Cylinder; Incl. 16A

1шт.

16a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

17

372359A1

HOSE ASSY.

1760 mm (69-5/16 in); Lift Cylinder; Incl. 23A

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

8-10шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

7шт.

20

367658A1

PLATE

10шт.

21

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl. 21A

2шт.

21a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

23

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4-8шт.

23a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.
