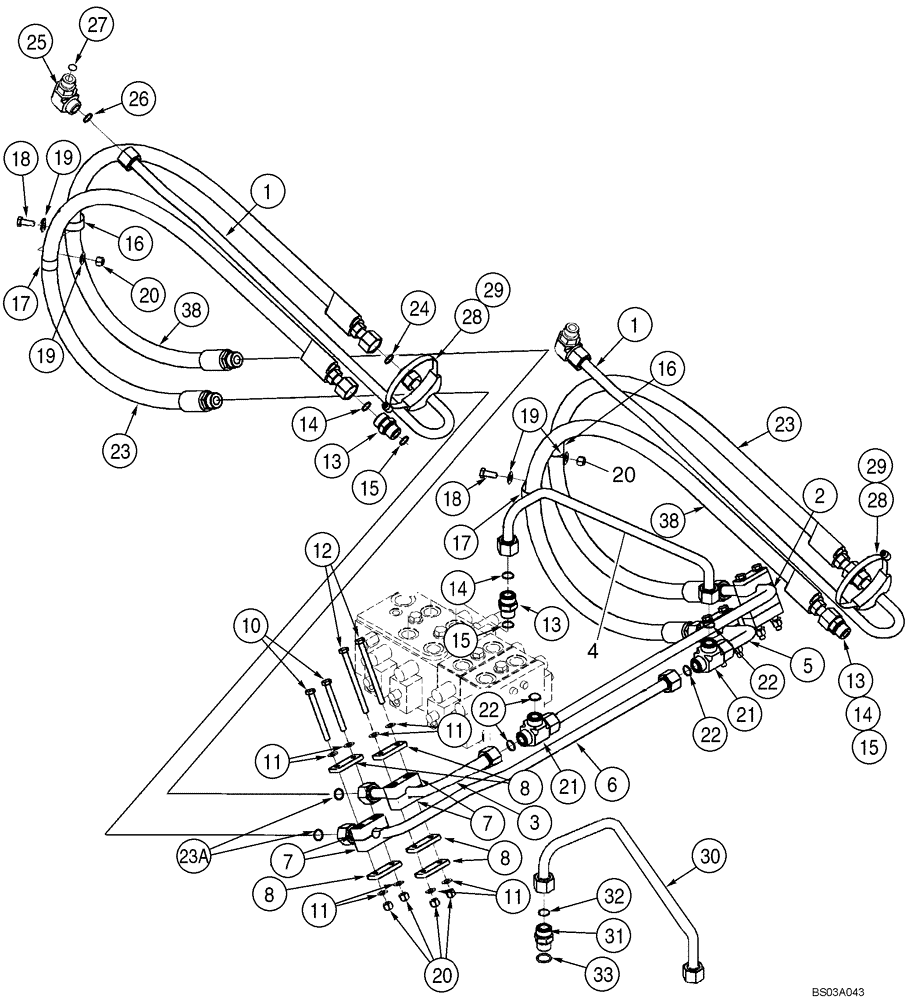

Запчасти Case 621D (08-04) - HYDRAULICS - LOADER LIFT (Z BAR LOADER) - IF USED (08) - HYDRAULICS

REF

INSTRUCTION

LOADER LIFT

1шт.

REF

INSTRUCTION

Z-BAR LOADER

1шт.

1

86983366

TUBE,25.40 mm OD x 385, 64 mm L

Lift Cylinder

2шт.

2

364755A1

TUBE,25.4 mm OD, 648, 185 mm Length

Left Hand

1шт.

3

364758A1

TUBE,25.4 mm OD, 185, 172 mm Length

Right Hand

1шт.

4

418210A1

TUBE

Rod End

1шт.

5

418111A1

TUBE

Rod End; Left Hand

1шт.

6

418113A1

TUBE

Rod End; Right Hand

1шт.

7

367489A1

BLOCK

4шт.

8

367658A1

PLATE

10шт.

10

827-10110

BOLT,Hex, M10 x 1.5 x 110mm, Cl 10.9

4шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

16шт.

12

827-10120

BOLT,Hex, M10 x 1.5 x 120mm, Cl 10.9

4шт.

13

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 14, 15

3шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

15

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

16

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

3/8 in

2шт.

17

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

2шт.

18

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

19

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

10шт.

21

701-410

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS

Incl. 22

2шт.

22

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

3шт.

23

372359A1

HOSE ASSY.

1760 mm (69-5/16 in); Lift Cylinder; Incl. 23A

2шт.

23a

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

24

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

2шт.

25

370522A1

ELBOW

1-7/16 fc sl x 27 orb; Incl. 26, 27

2шт.

26

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

27

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

28

391133A1

CLAMP

2шт.

29

214-1496

HOSE CLAMP,#96, 5.56" - 6.5", Type F Worm

2шт.

30

388817A1

TUBE

Closed End

1шт.

31

700-166

HYD CONNECTOR,1-7/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl. 32, 33

1шт.

32

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

33

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

34

393806A1

TUBE

Closed End; Models With Ride Control; Not Illustrated

1шт.

35

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Models With Ride Control; Incl. 37; Not Illustrated

1шт.

37

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal; Not Illustrated

3шт.

38

86983386

FLEXIBLE HOSE,19.05mm ID x 1145mm L

1145 mm; Lift Cylinder; Incl. 23A

2шт.
