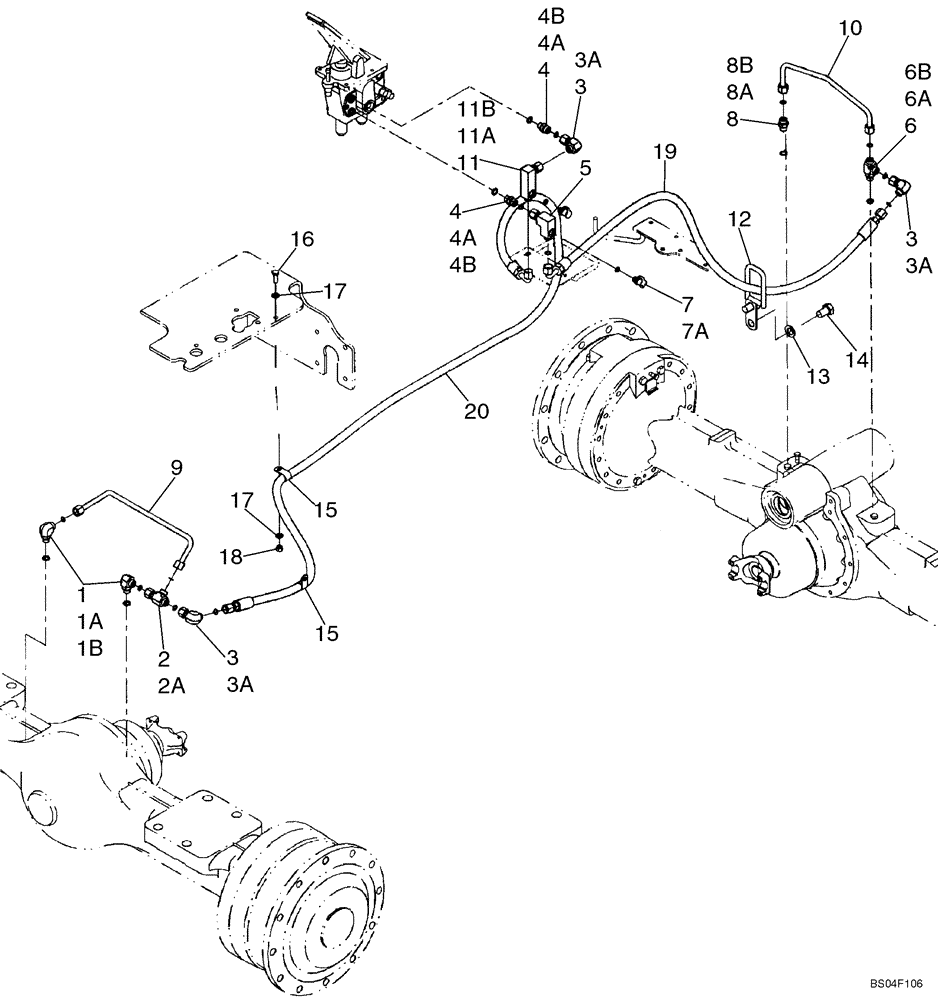

Запчасти Case 621D (07-07A) - HYDRAULICS - BRAKE MAIN - AXLES - IF USED (07) - BRAKES

1

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

12 mm ORFS x M18 ORB; Incl. 1A,1B

2шт.

1a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

1b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

2

701-416

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

12 MM, Incl. 2A

1шт.

2a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

3

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

12 mm Tube OD; Incl. 3A

3шт.

3a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

4

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 4A, 4B

2шт.

4a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

4b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

5

377754A1

FITTING

Axle Brakes

1шт.

6

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Adj. Run ORFS 12mm-M18-12mmIncl. 6A, 6B

1шт.

6a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

6b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

7

178889A1

DIAGNOSTIC COUPLER

Diagnostic; Incl. 7A

2шт.

7a

143349A1

DUST CAP

Dust

1шт.

8

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 8A, 8B

1шт.

8a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

9

386735A1

TUBE

Front Axle Brake

1шт.

10

386823A1

TUBE

Rear Axle Brake

1шт.

11

372031A3

FITTING

Declutch; Incl. 11A, 11B

1шт.

11a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

11b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

408004A1

GUARD ASSY.

Hose

1шт.

13

895-11020

WASHER,M20 x 37 x 3

22 x 37 x 3 mm

2шт.

14

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

M20 x 30; 10,9

2шт.

15

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

19

86992269

FLEXIBLE HOSE

Rear Axle Brake

1шт.

20

8605763

HOSE,12.7mm ID x 2679mm L, SAE 100R1

Front Axle Brake

1шт.

16

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.
