Запчасти Case 621D (07-07) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES

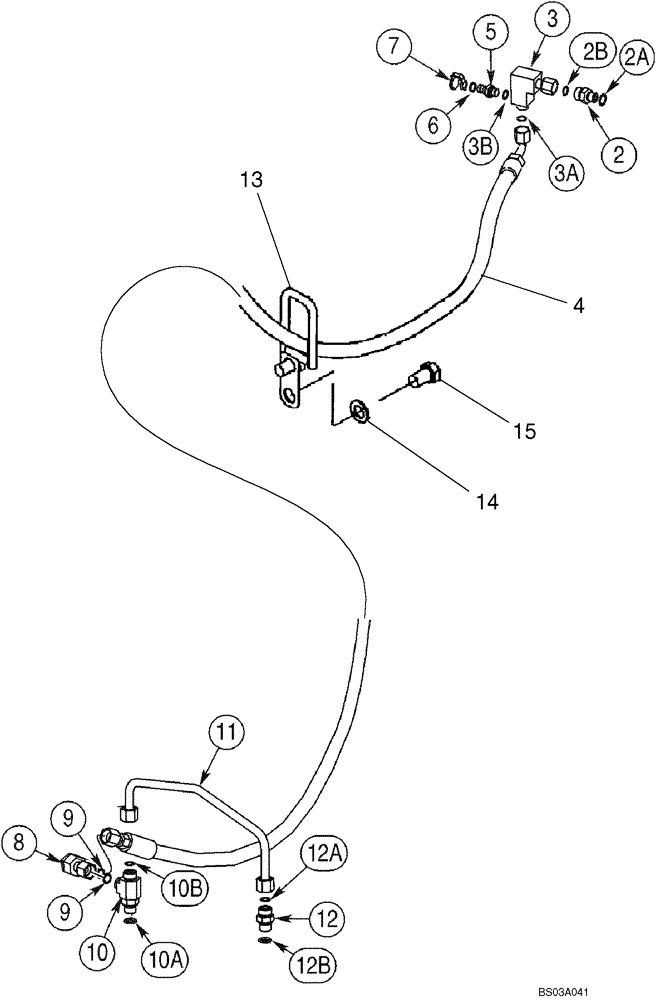

Схема запчастей Case 621D - (07-07) - HYDRAULICS - BRAKE, MAIN (07) - BRAKES
12
10
5
6
12b
8
9
13
3
3a
4
14
2
10a
10b
2b
7
9
2a
12a
15
11
3b

Артикул

Название

Примечание

Количество

87449850

PLASTIC PLUG

Dust Cover For Adjustable Screw; Not Illustrated

1шт.

REF

INSTRUCTION

MAIN BRAKE VALVE TO REAR AXLE

1шт.

8603088

VALVE

Main Brake; See Figure(s) 07-04, 07-05, 07-08; Not Illustrated

1шт.

2

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl. 2A, 2B

1шт.

2a

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

2b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

3

377754A1

FITTING

Incl. 3A, 3B

1шт.

3a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

3b

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

4

387017A1

HOSE ASSY.

1889 mm lg; Rear Brakes

1шт.

178889A1

DIAGNOSTIC COUPLER

Diagnostic; Incl. 5, 6, 7

1шт.

5

243670A1

COUPLING

Incl. 6

1шт.

6

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

7

143349A1

DUST CAP

1шт.

8

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl. 9

1шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

2шт.

10

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 10A, 10B

1шт.

10a

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

10b

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

11

386823A1

TUBE

Rear Axle

1шт.

12

700-102

HYD CONNECTOR,13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl. 12A, 12B

1шт.

12a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

12b

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

13

408004A1

GUARD ASSY.

Hose

1шт.

14

895-11020

WASHER,M20 x 37 x 3

22 x 37 x 3 mm

2шт.

15

627-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 10.9, Full Thd

M20 x 30; 10,9

2шт.

Выбрано товаров: 26
