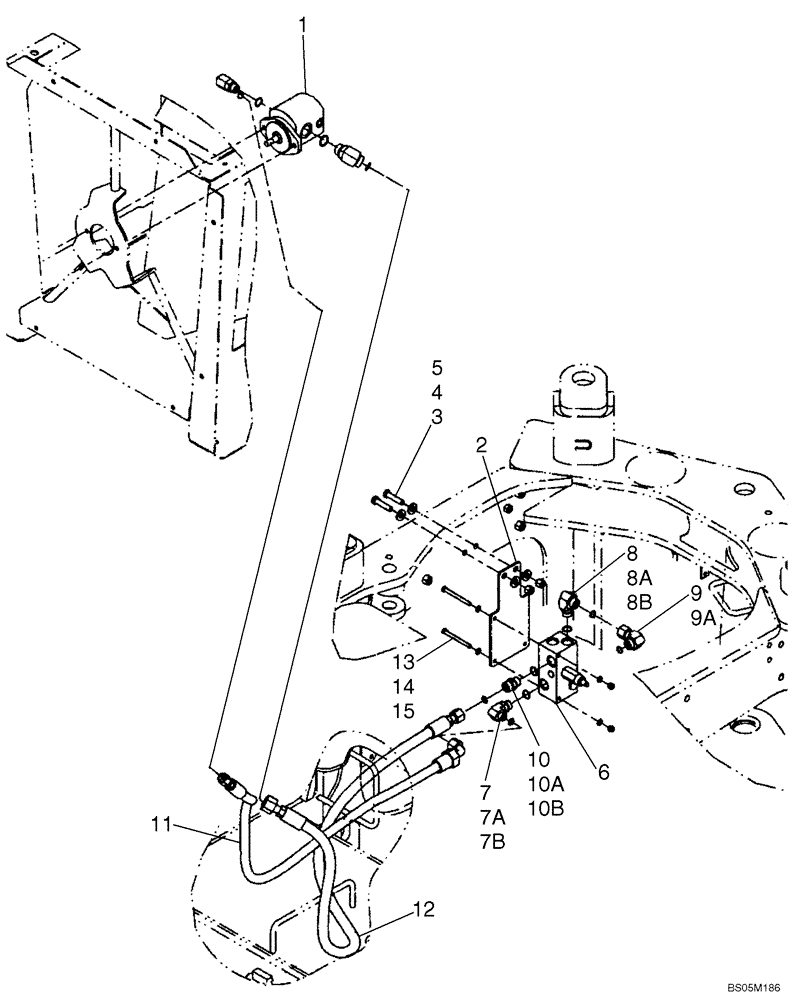

Запчасти Case 621D (02-07A) - COOLING SYSTEM - MOTOR, DRIVE (STANDARD FAN DRIVE) (02) - ENGINE

REF

INSTRUCTION

IF USED

1шт.

1

87426773

HYDRAULIC MOTOR,GEAR, 14 CC

Reversable Fan Drive

1шт.

1

87426773R

REMAN-HYD MOTOR

1шт.

1

87426773C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

87426795

SEAL KIT

For 897426773

1шт.

2

407750A1

BRACKET

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

4

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

5

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

6

8605141

VALVE, PRESSURE RELI

EF See Figure 02-10; Replaces 429361A2 Valve Used In Production

1шт.

7

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl. 7A, 7B

1шт.

7a

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Face Seal

1шт.

7b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

8

700-306

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 8A, 8B

1шт.

8a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

8b

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

9

701-361

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Female ORFS

Incl.9A

1шт.

9a

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

10

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl. 10A, 10B

1шт.

10a

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

Boss Seal

1шт.

10b

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Face Seal

1шт.

11

440832A1

HOSE ASSY.

2249 mm; Forward

1шт.

12

376179A2

HOSE ASSY.

1935 mm; Reverse

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

14

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.
