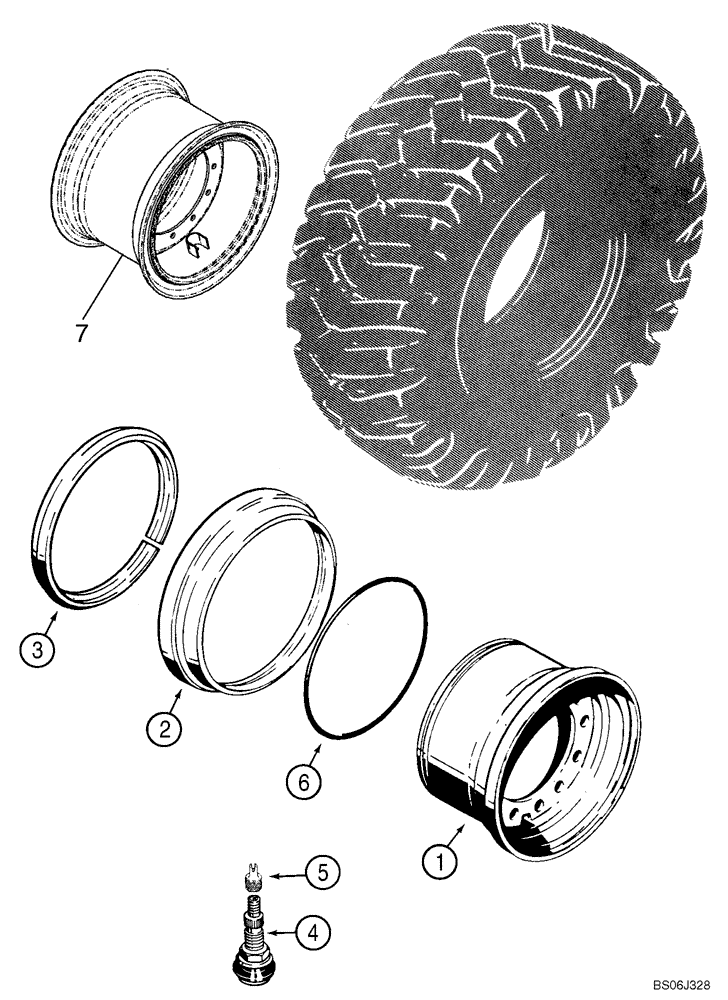

Запчасти Case 621D (06-30) - WHEELS (06) - POWER TRAIN

REF

INSTRUCTION

FOR 20.5 X 25 TIRES - THREE PIECE WHEEL

1шт.

376118A1

WHEEL ASSY.

Incl. 1 - 3; If Used

4шт.

1

NSS

NOT SOLD SEPARAT

Rim, Wheel

1шт.

2

103185A1

RING

Side

1шт.

3

A19100

LOCKING RING

Locking

1шт.

4

A20058

VALVE STEM

Incl. 5

4шт.

5

L19664

VALVE STEM

4шт.

6

A19101

O-RING,6.6mm Thk x 590.55mm ID

4шт.

7

87364574

WHEEL ASSY.

Solideal, COMPONENT PARTS NOT SERVICED SEPERATELY, If Used

4шт.
