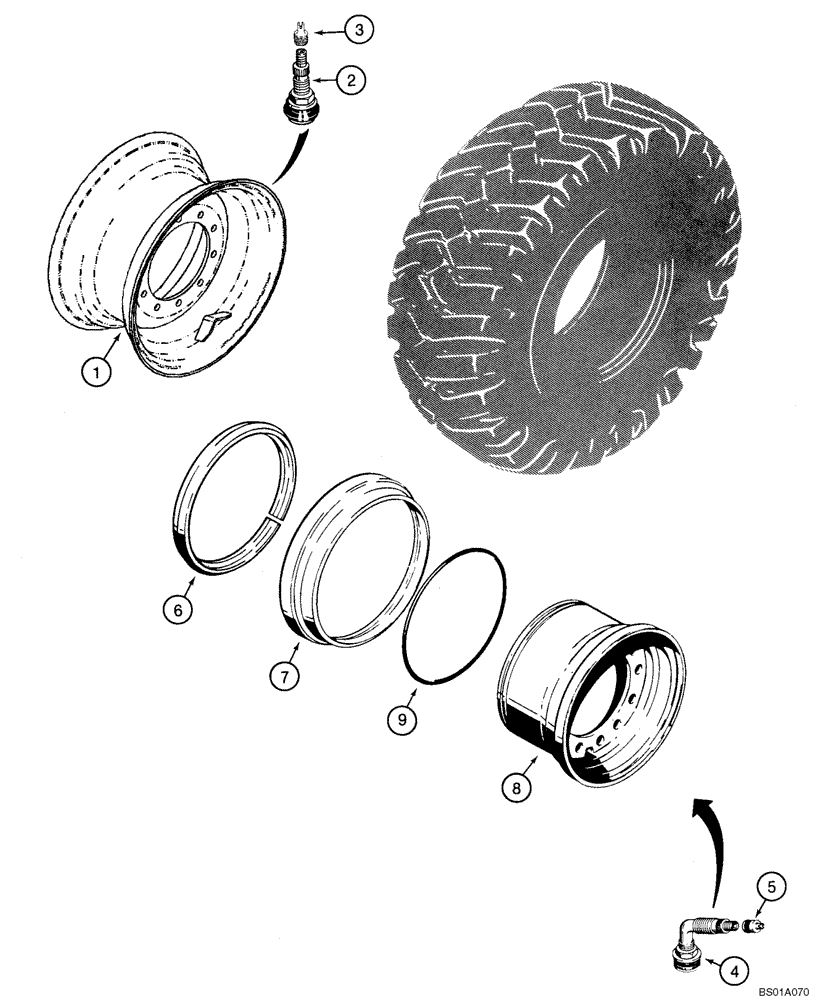

Запчасти Case 621D (06-29) - WHEELS (06) - POWER TRAIN

REF

INSTRUCTION

FOR 17.5 X 25 TIRES - ONE PIECE WHEEL

1шт.

1

344793A1

WHEEL

17.5 X 25 TIRES

4шт.

1

87492724

WHEEL ASSY

FOR 17 X 25 TIRES - THREE PIECE WHEEL, TAN

4шт.

2

A20058

VALVE STEM

Incl. 3

4шт.

3

L19664

VALVE STEM

4шт.

REF

INSTRUCTION

FOR 17.5 X 25 TIRES - THREE PIECE WHEEL

1шт.

4

L48133

VALVE STEM

Incl. 5

4шт.

5

L19664

VALVE STEM

1шт.

392844A1

WHEEL ASSY.

Incl. 6 - 8; If Used

4шт.

6

A19100

LOCKING RING

Locking

1шт.

7

A19099

RING

Side

1шт.

8

NSS

NOT SOLD SEPARAT

Rim, Wheel

1шт.

9

A16425

O-RING,10.29mm Thk x 573.02mm ID, 65 Duro

4шт.
