(06-28) - DRIVE SHAFT - CENTER AND REAR

Запчасти Case 621D (06-28) - DRIVE SHAFT - CENTER AND REAR (06) - POWER TRAIN

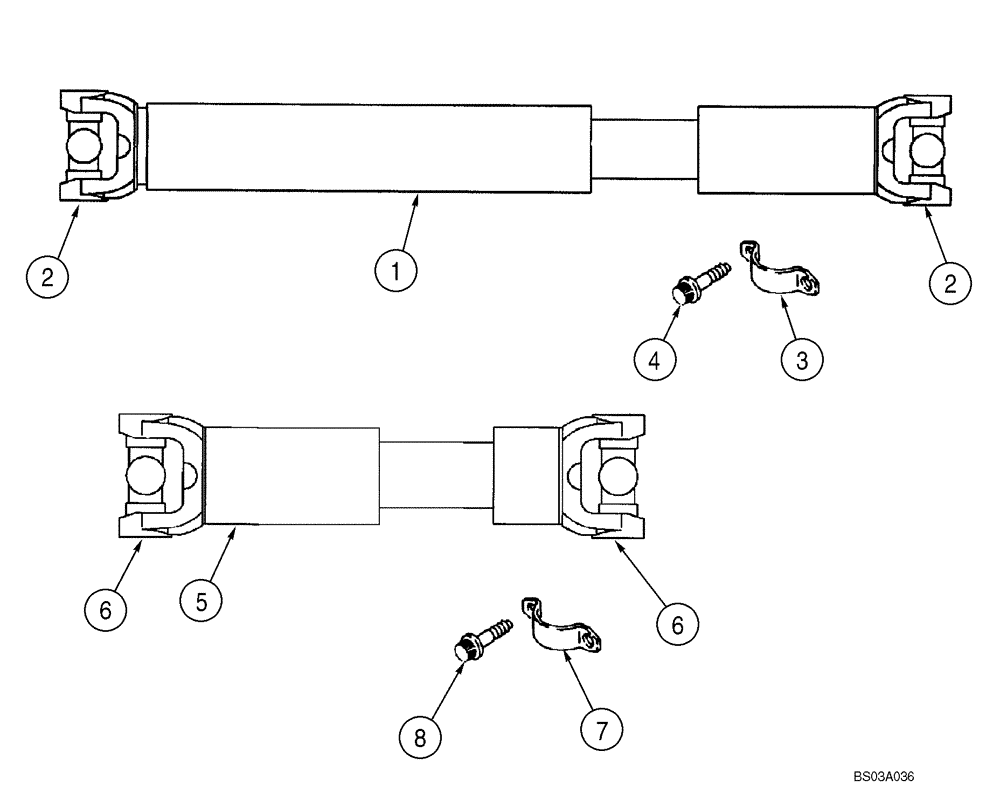

Схема запчастей Case 621D - (06-28) - DRIVE SHAFT - CENTER AND REAR (06) - POWER TRAIN
6
8
5
6
3
1
2
4
7
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CENTER DRIVE SHAFT

1шт.

1

86990312

DRIVE SHAFT

Incl. 2

1шт.

2

8604675

BEARING ASSY

2шт.

3

L116943

SECURING STRAP

Bearing

4шт.

87539949

KIT

KIT For Service Order In Place Of L116943

1шт.

4

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

Bearing Strap

8шт.

REF

INSTRUCTION

REAR DRIVE SHAFT

1шт.

5

86990311

DRIVE SHAFT

Incl. 6

1шт.

6

8604675

BEARING ASSY

2шт.

7

L116943

SECURING STRAP

Bearing

4шт.

87539949

KIT

KIT For Service Order In Place Of L116943

1шт.

8

19-6247

BOLT,3/8" - 24 x 0.75", Grade 8

Bearing Strap

8шт.
