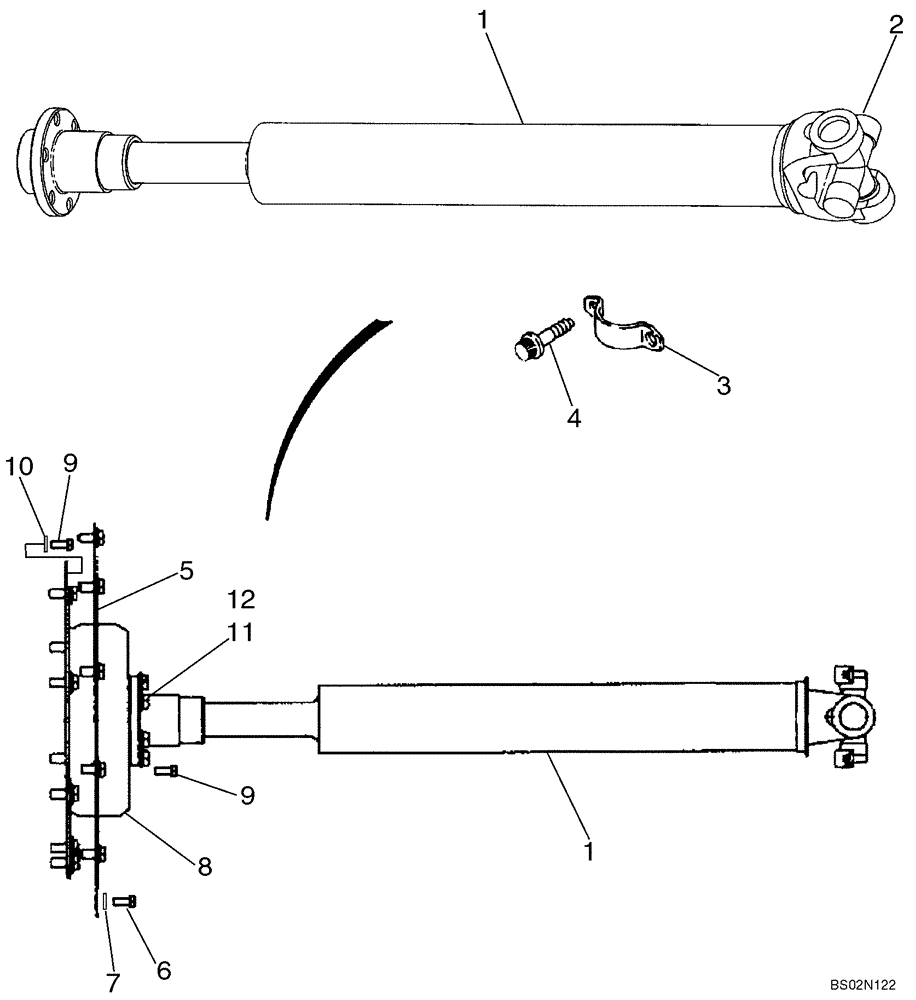

Запчасти Case 621D (06-26) - DRIVE SHAFT (06) - POWER TRAIN

1

86983613

DRIVE SHAFT

Engine; Incl. 2

1шт.

2

8604432

U-JOINT SPIDER

480R

1шт.

3

D137626

CLAMP,30.175mm D Clamping Pipe

Bearing

2шт.

4

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16; Replaces D137627 Bolt

4шт.

5

86983621

COVER

Flywheel

1шт.

6

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

10шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

10шт.

8

355829A2

COUPLING

1шт.

9

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

10

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

12

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

6шт.
