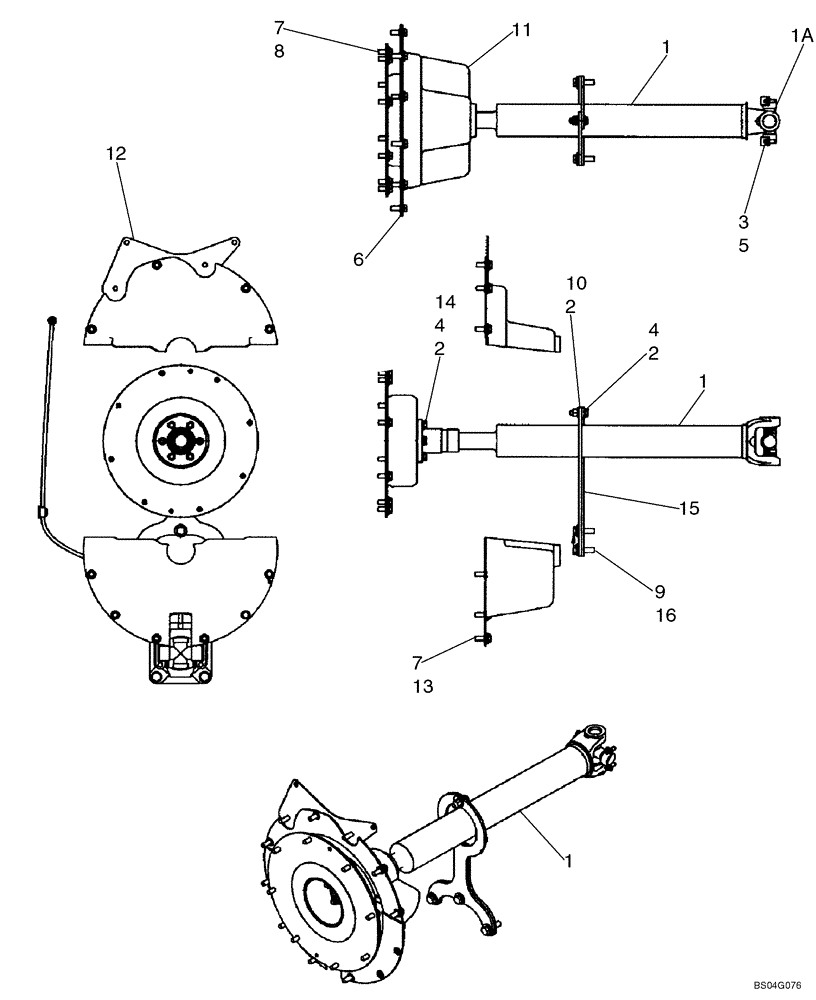

Запчасти Case 621D (06-25) - DRIVE SHAFT - ENGINE (06) - POWER TRAIN

1

86983613

DRIVE SHAFT

Engine; Incl. 1A

1шт.

1a

8604432

U-JOINT SPIDER

Spider

1шт.

2

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

8шт.

3

D137626

CLAMP,30.175mm D Clamping Pipe

Bearing

2шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

7шт.

5

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16; Replaces D137627 Bolt

4шт.

6

355829A2

COUPLING

Driveshaft

1шт.

7

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

8шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

8шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

3шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

11

87447773

COVER

Fan Deflector

1шт.

12

87449409

PLATE

Electrical Support

1шт.

13

806-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

M10 x 30; 10.9

10шт.

14

345-49

SEALANT

#242

1шт.

15

8605687

GUARD

Shaft

2шт.

16

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

3шт.

17

760-14113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

Used with Item 11; Not Illustrated

2шт.
