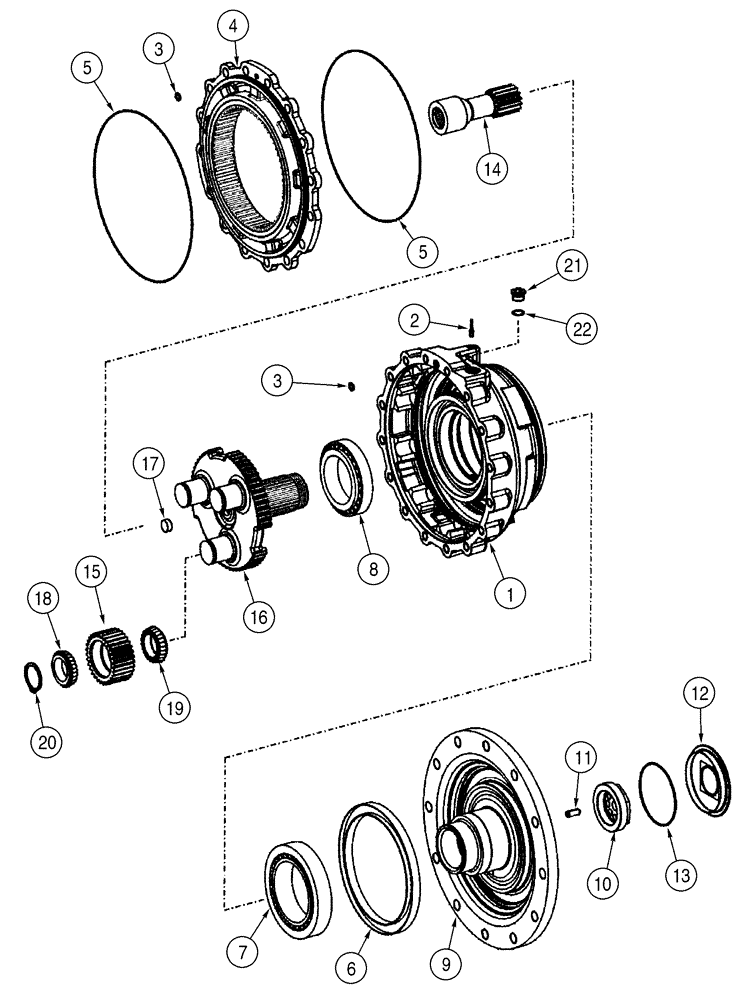

Запчасти Case 621D (06-23E) - AXLE, REAR - HUB, PLANETARY (06) - POWER TRAIN

87406479

REAR AXLE

Limited Slip; Incl. Figure(s) 06-23A -23E

1шт.

87358583

REAR AXLE

Limited Slip; Incl. 1 - 32; Incl. Figure(s) 06-23 - 23E; Same As 87406479 Except For Wheel End Assembly

1шт.

87358583R

REMAN-AXLE

621D S/N JEE0135501 & Aft.

1шт.

87358583C

CORE-AXLE

Return Number

1шт.

8603189

END ASSY.

Incl. 1 - 22; Incl. Figure 06-23D; Axle S/N 431996 & Before; No Longer Available, Order 87441322 End Assy

1шт.

87441322

END ASSY.

Incl. 1 - 22; Incl. Figure 06-23D; Axle S/N 431997 & After

1шт.

87358681

END ASSY.

Incl. 1 - 22; Incl. Figure 06-23D; Axle S/N 431997 & After

1шт.

1

87437916

HOUSING

Replaces 8603557 Housing

1шт.

2

8603673

PLUG

1шт.

3

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

2шт.

4

8603560

RING GEAR,Planetary Ring

1шт.

5

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

360 x 2,5

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

8603691

TAPERED BEARING

Outer

1шт.

8

8603692

TAPERED BEARING

Inner

1шт.

9

8603675

FLANGE

M22 x 1,5; Output

1шт.

10

8603565

NUT

1шт.

11

8603566

COTTER PIN

1шт.

12

8603567

COVER

1шт.

13

8603527

O-RING

1шт.

14

8603568

GEAR

1шт.

15

8603569

GEAR

3шт.

15

87358699

GEAR

Planet; Replaces 8603569, Also Order 87358700, 84219769, And 87358698

3шт.

16

8603693

CARRIER

No Longer Used; Order 87438300

1шт.

16

87438300

CARRIER

Replaces 8603693 Carrier

1шт.

16

87358700

CARRIER

CARRIER, PANETARY Replaces 87438300

1шт.

17

8603571

PLUG

1шт.

18

8603572

ROLLER BEARING

Outer

3шт.

19

8603573

ROLLER BEARING

Inner

3шт.

19

84219769

BEARING, ROLLER, CYL

CYLINDER, Replaces 8603572 And 8603573

3шт.

20

8603574

RETAINER

3шт.

20

87358698

SNAP RING

RETAINING, Replaces 8603574

4шт.

21

8603575

PLUG

Incl. 22

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.
