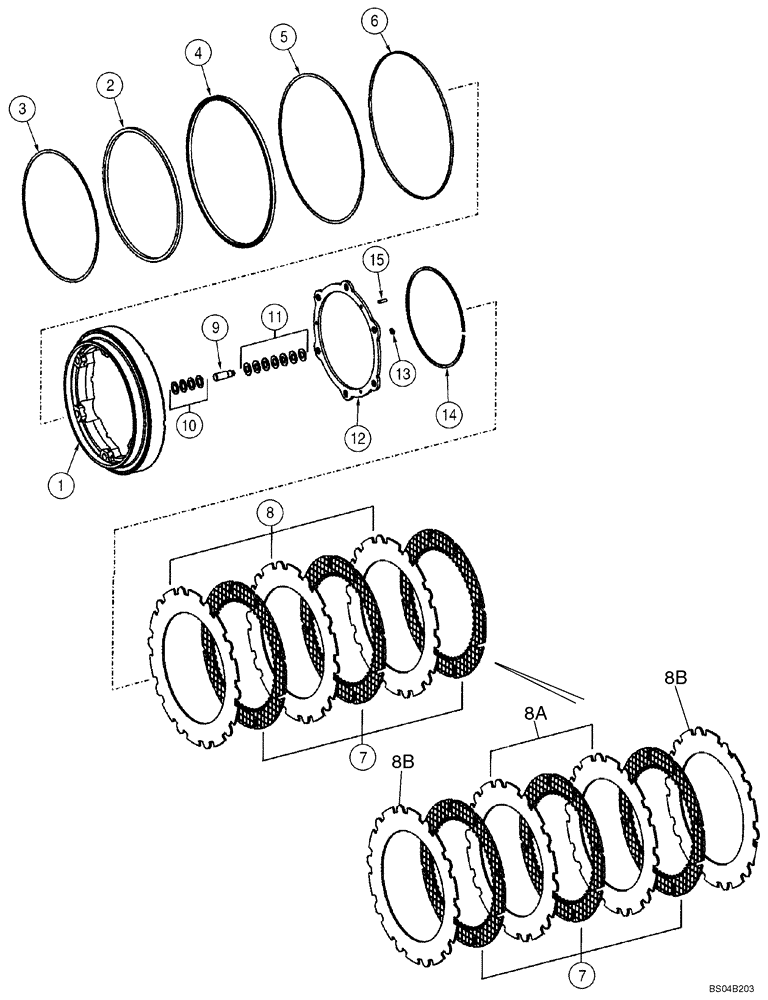

Запчасти Case 621D (06-23D) - AXLE, REAR - BRAKE (06) - POWER TRAIN

87406479

REAR AXLE

Limited Slip; Incl. Figure(s) 06-23A - 23E

1шт.

87358583

REAR AXLE

Limited Slip; Incl. 1 - 32; Incl. Figure(s) 06-23 - 23E; Same As 87406479 Except For Wheel End Assembly

1шт.

87358583R

REMAN-AXLE

621D S/N JEE0135501 & Aft.

1шт.

87358583C

CORE-AXLE

Return Number

1шт.

8603189

END ASSY.

Incl. 1 - 15; Incl. Figure 06-23E; Axle S/N 431996 & Before; No Longer Available, Order 87441322 End Assy

1шт.

8605587

REMAN-WHEEL END ASSY

REMANUFACTURED AXLE - NA Only

1шт.

8605588

CORE-WHEEL END ASSY

Return Number, AXLE - NA Only

1шт.

87441322

END ASSY.

Incl. 1 - 15; Incl. Figure 06-23E; Axle S/N 431997 & After

1шт.

87358681

END ASSY.

Incl. 1 - 15; Incl. Figure 06-23E; Axle S/N 431997 & After

1шт.

1

8603166

PISTON

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

8603581

BRAKE DISC

3шт.

87365251

REPAIR KIT

Brake Pack; Incl. Refs. 7, 8A, 8B

1шт.

7

87341835

BRAKE DISC

Replaces 8603581

4шт.

8

8603582

BRAKE PLATE

Used In (3) Plate Brake Assy; If Used

3шт.

8a

8603582

BRAKE PLATE

Used With Ref 8B In (4) Plate Brake Assy; If Used

2шт.

8b

87441328

PLATE,2mm Thk

Used With Ref 8A In (4) Plate Brake Assy; If Used

2шт.

9

8603163

PIN

6шт.

10

8603583

SEAL

24шт.

11

8603584

BELLEVILLE WASHER

42шт.

12

8603162

SHIM

1шт.

13

8603788

SNAP RING

6шт.

14

8603585

SNAP RING

1шт.

15

8603796

ROLL PIN,6mm OD x 20mm L

6 x 20 mm

6шт.
