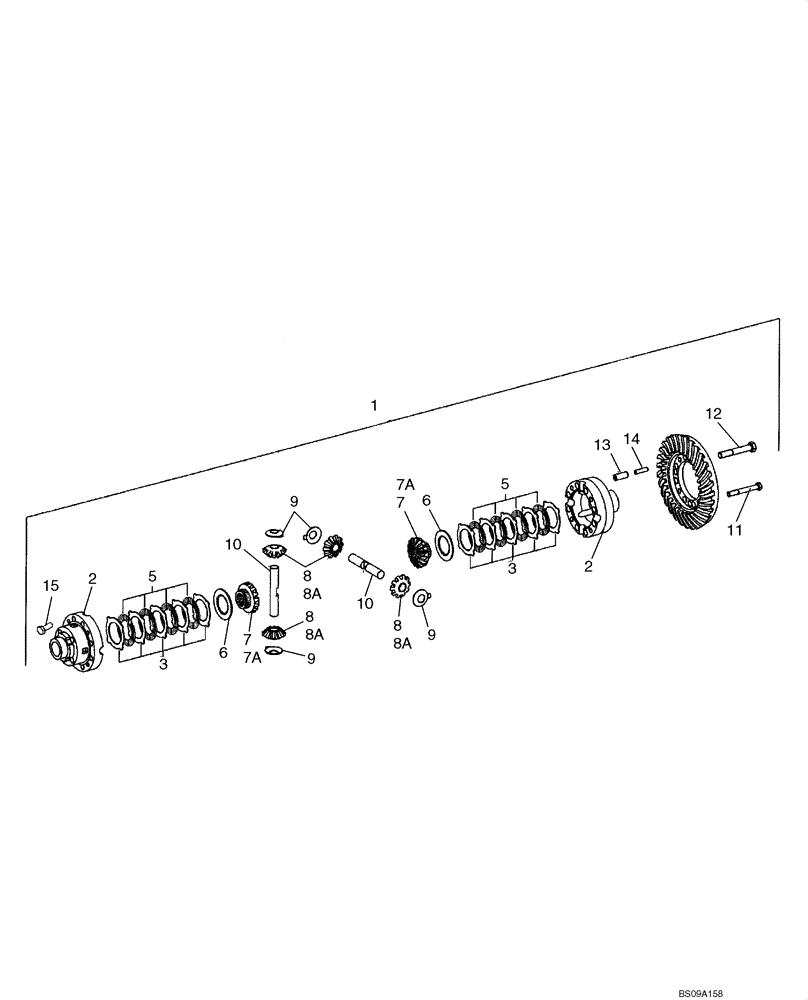

Запчасти Case 621D (06-23C) - AXLE, REAR - DIFFERENTIAL (06) - POWER TRAIN

87406479

REAR AXLE

Limited Slip; Inc. 1 - 15; Inc. Figure(s) 06-23A - 23E

1шт.

87358583

REAR AXLE

Limited Slip; Inc. 1 - 15; Inc. Figure(s) 06-23 - 23E; Same As 87406479 Except For Wheel End Assembly

1шт.

87358583R

REMAN-AXLE

621D S/N JEE0135501 & Aft.

1шт.

87358583C

CORE-AXLE

Return Number

1шт.

8605274

DIFF CARRIER & GEARS

Inc. 2,5,6,7,8-15,17-20

1шт.

1

84144141

DIFFERENTIAL ASSY

Inc. 2 - 15

1шт.

2

8605359

HOUSING

If Used

1шт.

3

8603713

PLATE

1,4 mm; Separator; If Used

10шт.

5

8603714

PLATE

Friction

8шт.

6

8603715

PRESSURE RING

3,0 mm; Pressure

2шт.

7

84144323

GEAR

2шт.

8

84144326

GEAR

4шт.

9

8603718

THRUST WASHER

4шт.

10

8603719

SHAFT

2шт.

11

8603720

BOLT

M12 x 1,5 x 95

4шт.

12

429500A1

SPECIAL BOLT

M16 x 1,5 x 100

8шт.

13

8603722

PIN

16 x 40

4шт.

14

8603723

PIN

10 x 40

4шт.

15

8603724

SCREW

4шт.

16

8603271

SEAL

Front Bevel Gear (Not Shown)

1шт.

17

8605631

CLUTCH PLATE

If Used (Not Shown)

1шт.

18

8605632

CLUTCH PLATE

If Used (Not Shown)

1шт.

19

8605633

CLUTCH PLATE

If Used (Not Shown)

1шт.

20

8605634

WASHER

If Used (Not Shown)

8шт.
