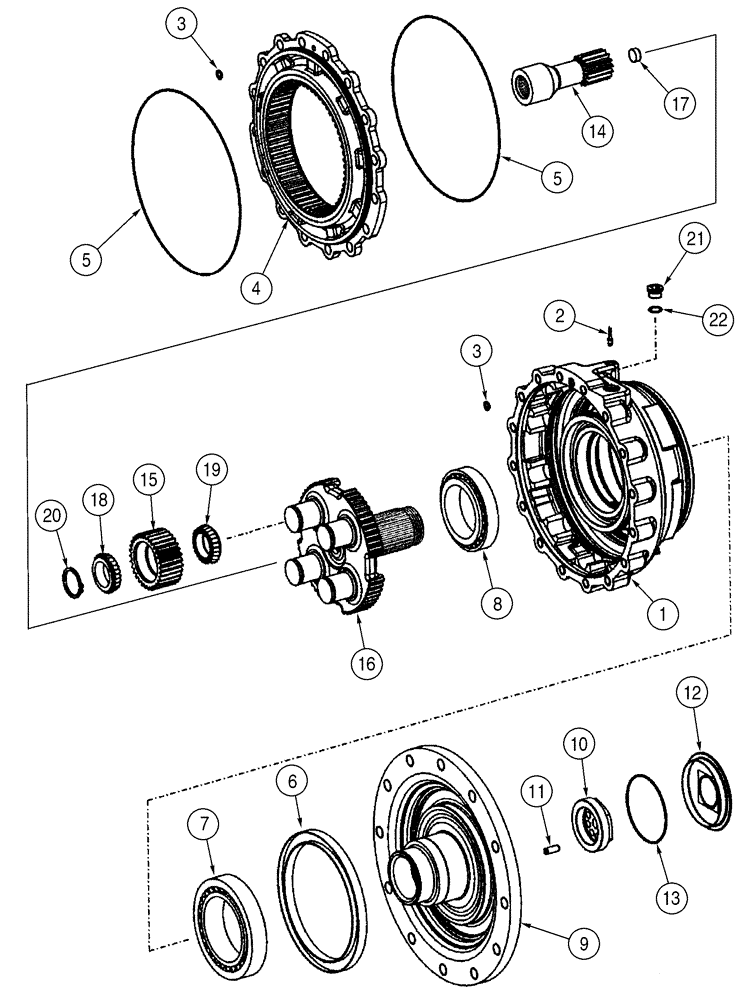

Запчасти Case 621D (06-22E) - AXLE, FRONT - HUB, PLANETARY (06) - POWER TRAIN

87405408

FRONT AXLE

Limited Slip; Incl. Figure(s) 06-22A - 22E

1шт.

87358580R

REMAN-FRT AXLE wo DL

REMAN-FRONT AXLE 621D S/N JEE0135501 & Aft., Reman For New P/N's 87405408 & 87358580

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

87313917

FRONT AXLE

Limited Slip; See Figure(s) 06-22A - 22E; Oil Filled; Components Same As 87405408

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

87358580

FRONT AXLE

Limited Slip; See Figure(s) 06-22A - 22E; Components Same As 87313917 Except Wheel End Assembly Changes

1шт.

87358580R

REMAN-FRT AXLE wo DL

621D S/N JEE0135501 & Aft.

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

8603188

END ASSY.

Incl. 1 - 22; Incl. Figure 06-22D; Axle S/N 431996 & Before

1шт.

8605585

REMAN-WHEEL END ASSY

REMANUFACTURED END ASSY./AXLE

1шт.

8605586

CORE-WHEEL END ASSY

Return Number, END ASSY./AXLE

1шт.

87441321

END ASSY.

Incl. 1 - 22; Incl. Figure 06-22D; Axle S/N 431997 & After

1шт.

87358680

END

Incl. 1 - 22; Incl. Figure 06-22D Axle S/N 431997 & After

1шт.

1

87437916

HOUSING

Replaces 8603557 Housing

1шт.

2

8603673

PLUG

1шт.

3

8603559

O-RING,2.5mm Thk x 12.5mm ID, 75 Duro

2шт.

4

8603560

RING GEAR,Planetary Ring

Planetary Ring

1шт.

5

8603674

O-RING,2.5mm Thk x 362mm ID, 70 Duro

2шт.

6

84150634

SEAL

SEALRING Replaces 8603562

1шт.

7

8603563

TAPERED BEARING

Outer

1шт.

8

8603564

TAPERED BEARING

Inner

1шт.

9

8603675

FLANGE

M22 x 1,5; Output

1шт.

10

8603565

NUT

1шт.

11

8603566

COTTER PIN

1шт.

12

8603567

COVER

1шт.

13

8603527

O-RING

1шт.

14

8603568

GEAR

1шт.

15

8603569

GEAR

4шт.

15

87358699

GEAR

Planet; Replaces 8603569; Assy, Incl. 19

4шт.

16

87437907

CARRIER

Replaces 8603676 Carrier Which Is No Longer Used

1шт.

16

87358702

PLANET CARRIER

PANETARY, Replaces 87437907

1шт.

17

8603571

PLUG

1шт.

18

8603572

ROLLER BEARING

Outer

4шт.

19

8603573

ROLLER BEARING

Inner

4шт.

19

87358695

BEARING ASSY

Replaces 8603572 And 8603573

4шт.

20

8603574

RETAINER

4шт.

20

87358698

SNAP RING

RETAINING, Replaces 8603574

4шт.

21

8603575

PLUG

1шт.

22

8603208

O-RING,2mm Thk x 21mm ID

1шт.
