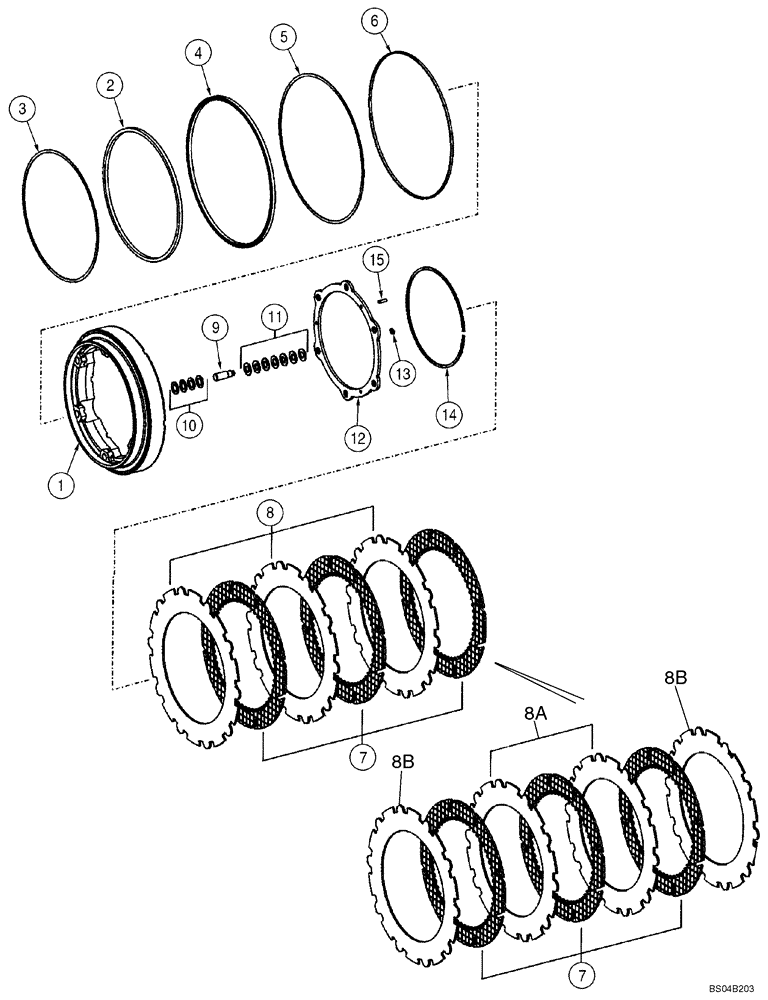

Запчасти Case 621D (06-22D) - AXLE, FRONT - BRAKE (06) - POWER TRAIN

87405408

FRONT AXLE

Limited Slip; Incl. Figure(s) 06-22A - 22E

1шт.

87358580R

REMAN-FRT AXLE wo DL

REMAN-FRONT AXLE 621D S/N JEE0135501 & Aft., Reman For New P/N's 87405408 & 87358580

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

87313917

FRONT AXLE

Limited Slip; See Figure(s) 06-22A - 22E; Oil Filled; Components Same As 87405408

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

87358580

FRONT AXLE

Limited Slip; See Figure(s) 06-22A - 22E; Components Same As 87313917 Except Wheel End Assembly Changes

1шт.

87358580R

REMAN-FRT AXLE wo DL

621D S/N JEE0135501 & Aft

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

8605585

REMAN-WHEEL END ASSY

REMANUFACTURED END ASSY./AXLE

1шт.

8605586

CORE-WHEEL END ASSY

Return Number

1шт.

8603188

END ASSY.

Incl. 1 - 15; Incl. Figure 06-22E; Axle S/N 431996 & Before

1шт.

87441321

END ASSY.

Incl. 1 - 15; Incl. Figure 06-22E; Axle S/N 431997 & After

1шт.

87358680

END

Incl. 1 - 15; Incl. Figure 06-22E; Axle S/N 431997 & After

1шт.

1

8603166

PISTON

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

1шт.

3

8603577

RING

1шт.

4

8605315

SEAL

1шт.

5

8603579

RING

1шт.

6

8603580

SNAP RING

1шт.

7

8603581

BRAKE DISC

3шт.

87365251

REPAIR KIT

Brake Pack; Incl. Refs. 7, 8A, 8B

1шт.

7

87341835

BRAKE DISC

Replaces 8603581

4шт.

8

8603582

BRAKE PLATE

Used In (3) Plate Brake Assy; If Used

3шт.

8a

8603582

BRAKE PLATE

Used With Ref 8B In (4) Plate Brake Assy; If Used

2шт.

8b

87441328

PLATE,2mm Thk

Used With Ref 8A In (4) Plate Brake Assy; If Used

2шт.

9

8603163

PIN

6шт.

10

8603583

SEAL

24шт.

11

8603584

BELLEVILLE WASHER

42шт.

12

8603162

SHIM

1шт.

13

8603788

SNAP RING

6шт.

14

8603585

SNAP RING

1шт.

15

8603796

ROLL PIN,6mm OD x 20mm L

6 x 20 mm

6шт.
