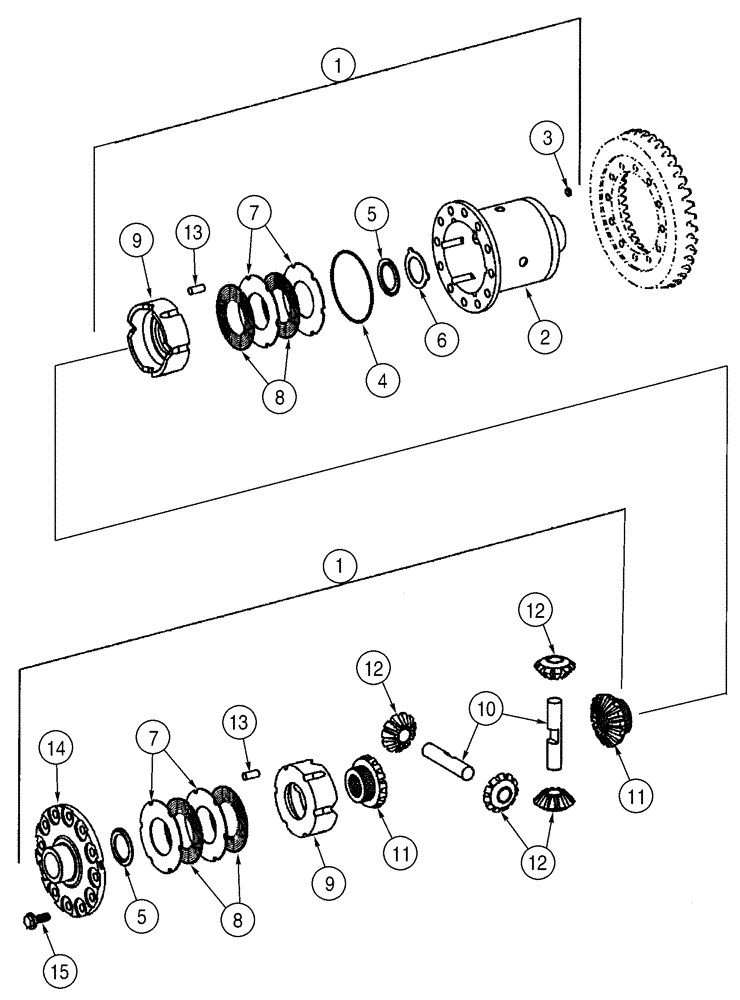

Запчасти Case 621D (06-22C) - AXLE, FRONT - DIFFERENTIAL (06) - POWER TRAIN

87405408

FRONT AXLE

Limited Slip; Incl. 1 - 15; Incl. Figure(s) 06-22A - 22E

1шт.

87358580R

REMAN-FRT AXLE wo DL

REMAN-FRONT AXLE 621D S/N JEE0135501 & Aft., Reman For New P/N's 87405408 & 87358580

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

87313917

FRONT AXLE

Limited Slip; See Figure(s) 06-22A - 22E; Oil Filled; Components Same As 87405408

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

87358580

FRONT AXLE

Limited Slip; See Figure(s) 06-22A - 22E; Components Same As 87313917 Except Wheel End Assembly Changes

1шт.

87358580R

REMAN-FRT AXLE wo DL

621D S/N JEE0135501 & Aft.

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

8605272

CARRIER ASSY.

Limited Slip; Incl. 2 - 15

1шт.

1

8603546

AXLE DIFFERENTIAL

Incl. 2 - 15

1шт.

2

8603545

HOUSING

1шт.

3

8603271

SEAL

6шт.

4

8603250

SNAP RING

1шт.

5

8603251

THRUST WASHER

2шт.

6

8603282

THRUST WASHER

1шт.

7

8603277

CLUTCH PLATE

2,2 mm; Clutch Separator Plate

1шт.

7

8603547

CLUTCH PLATE

CLUTCH DISK CLUTCH, PLATE, 2,1 mm; Outer

1шт.

7

8603278

CLUTCH PLATE,Steel

2,3 mm; Clutch Separator Plate

1шт.

7

8603279

CLUTCH PLATE

2,4 mm; Clutch Separator Plate

1шт.

7

8603280

CLUTCH PLATE

2,5 mm; Clutch Separator Plate

1шт.

8

8603272

DISC

4шт.

9

8603252

SNAP RING

2шт.

10

8603253

SHAFT

2шт.

11

8603267

GEAR

16T

2шт.

12

8603254

PINION

11T

4шт.

13

8603255

PIN

12шт.

14

8603548

COVER

1шт.

15

8603268

BOLT,Lock

12шт.
