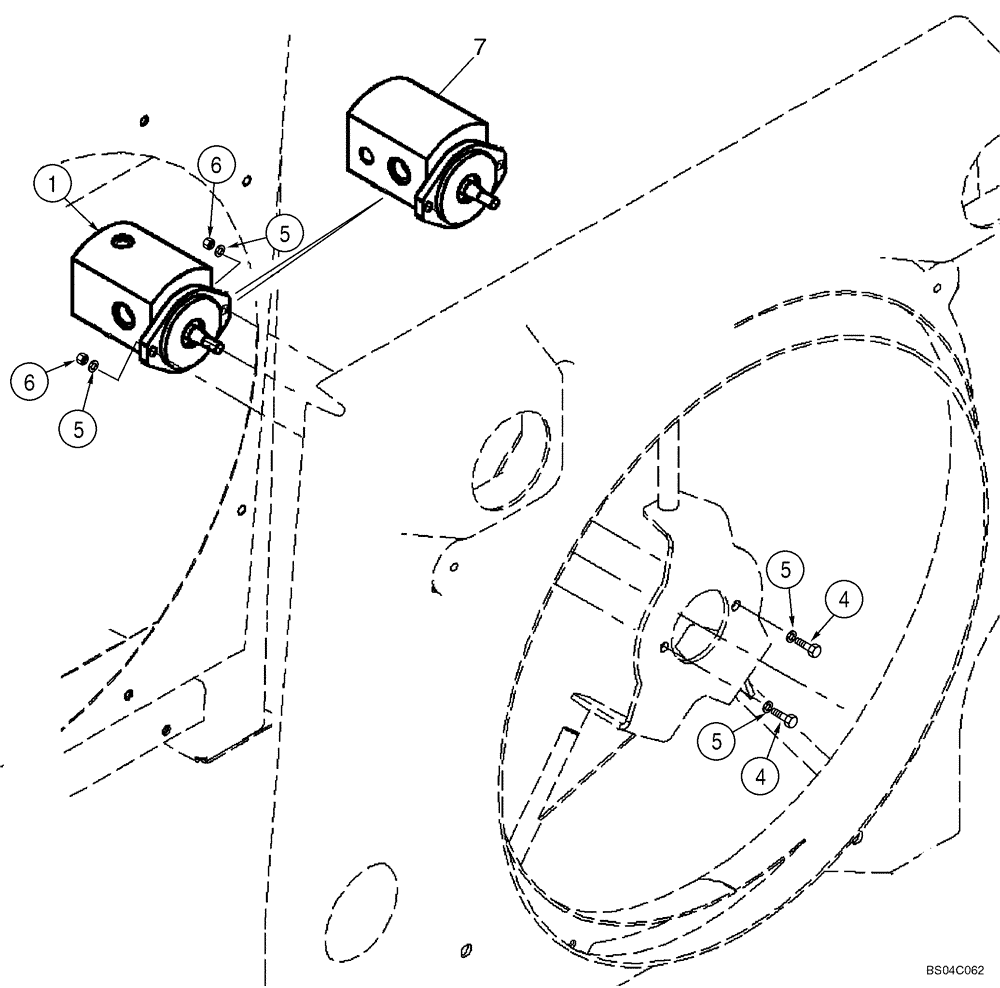

Запчасти Case 621D (02-06) - COOLING SYSTEM - MOTOR, DRIVE (MOUNTING) (02) - ENGINE

1

400337A1

MOTOR, HYDRAULIC

Fan Drive; Standard or Reversible; Incl. Ref 2, 3; With M12 Drain Port On Top; No Longer Available, Order 87426773 Motor, Ref 7; Also Order 700-378 Elbow and 87427292 Hose On Figure 07-05

1шт.

2

8604520

SEAL

Shaft Fan Pump; Not Illustrated

1шт.

3

8604978

SEAL KIT

Seal; Not Illustrated

1шт.

4

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

7

87426773

HYDRAULIC MOTOR,GEAR, 14 CC

Fan Drive; Standard or Reversible; Includes 87426795 Seal Kit; With M14 Drain Port On Side

1шт.

7

87426773R

REMAN-HYD MOTOR

621D (S/N JEE0135501 & After) (1/03-)

1шт.

7

87426773C

CORE-MOTOR HYDRAULIC

Return number

1шт.

87426795

SEAL KIT

Seal; Not Illustrated

1шт.
