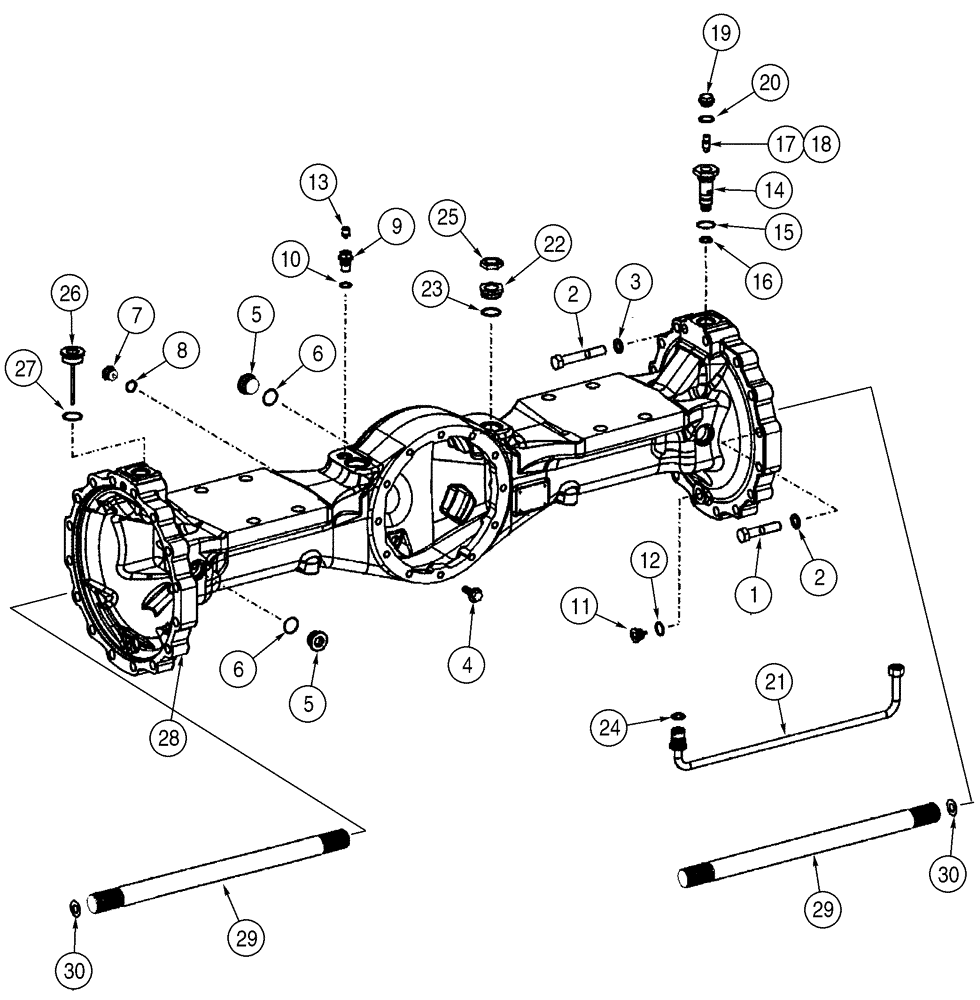

Запчасти Case 621D (06-22A) - AXLE, FRONT - HOUSING (06) - POWER TRAIN

87405408

FRONT AXLE

Limited Slip; Incl. Figure(s) 06-22A - 22E; Incl. 1 - 29

1шт.

87358580R

REMAN-FRT AXLE wo DL

REMAN-FRONT AXLE 621D S/N JEE0135501 & Aft., Reman For New P/N's 87405408 & 87358580

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

87313917

FRONT AXLE

Limited Slip; See Figure(s) 06-22A - 22E

1шт.

87358580R

REMAN-FRT AXLE wo DL

621D S/N JEE0135501 & Aft., Reman For New P/N's 87313917 & 87358580

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

87358580

FRONT AXLE

Limited Slip; See Figure(s) 06-22A - 22E; Components Same As 87313917 Except Wheel End Assembly Changes

1шт.

87358580R

REMAN-FRT AXLE wo DL

621D S/N JEE0135501 & Aft.

1шт.

87358580C

CORE-FRONT AXLE

Return Number

1шт.

1

514-1107

BOLT,Hex, M18 x 1.5 x 85mm, Cl 10.9

28шт.

2

8603670

BOLT

M18 x 115

4шт.

3

8603202

WASHER

32шт.

4

8603206

BOLT

12шт.

5

8603549

PLUG

2шт.

6

8605636

O-RING,2.2mm Thk x 33mm ID

33 x 2.2; If Used

2шт.

6

8603727

O-RING,2.2mm Thk x 33mm ID

33 x 2; If Used

2шт.

7

8603550

PLUG

1шт.

8

8603208

O-RING,2mm Thk x 21mm ID

1шт.

9

8603256

PLUG

1шт.

10

8603208

O-RING,2mm Thk x 21mm ID

1шт.

11

8603550

PLUG

2шт.

12

8603200

SEALING RING

2шт.

13

8603201

BREATHER

1шт.

14

8603551

FITTING

2шт.

15

8605636

O-RING,2.2mm Thk x 33mm ID

33 x 2.2; If Used

2шт.

15

8603727

O-RING,2.2mm Thk x 33mm ID

33 x 2; If Used

2шт.

16

8603552

GASKET

2шт.

17

3222214R1

VALVE

Breather; Incl. 18

2шт.

18

NSS

NOT SOLD SEPARAT

Dust Cap

2шт.

19

8603210

PLUG

M26 - 1,5

2шт.

20

8603799

RING

26 x 31 mm

2шт.

21

8603672

TUBE

Brake; No Longer Used; Replaced By 87436733

2шт.

21

87436733

TUBE

Internal Brake; Replaces 8603672

2шт.

22

8603696

FITTING

Incl. 23

2шт.

23

8603207

O-RING,2.5mm Thk x 38mm ID

2шт.

24

8603725

O-RING

2шт.

25

8603619

TUBE NUT

2шт.

26

8603694

DIPSTICK

Oil

1шт.

27

8603207

O-RING,2.5mm Thk x 38mm ID

1шт.

28

8603668

AXLE HOUSING

1шт.

29

8603555

HALF SHAFT

2шт.

30

8603669

SHIM,0.4mm Thk

1шт.

30

8603730

SHIM,0.2mm Thk

1шт.

30

8603731

SHIM,1mm Thk

1шт.

30

8603732

SHIM,1.5mm Thk

If Used

1шт.
