(06-21) - TRANSMISSION - FILTER, OIL AND FILLER COVER

Запчасти Case 621D (06-21) - TRANSMISSION - FILTER, OIL AND FILLER COVER (06) - POWER TRAIN

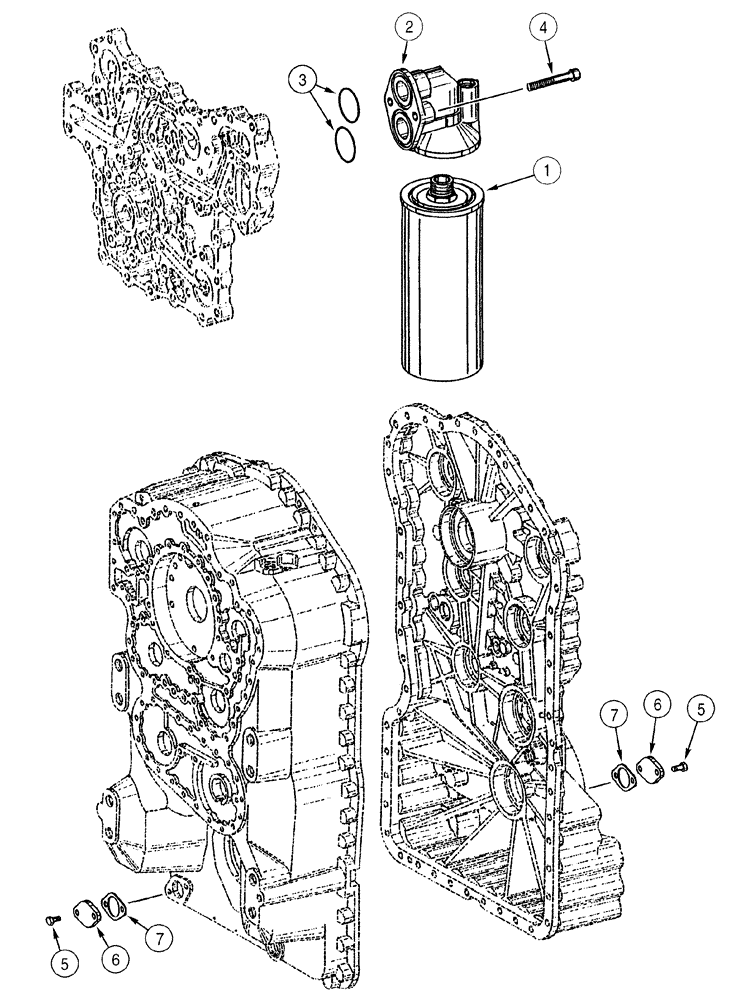

Схема запчастей Case 621D - (06-21) - TRANSMISSION - FILTER, OIL AND FILLER COVER (06) - POWER TRAIN
1
5
2
7
3
7
5
4
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

8605271

TRANSMISSION

Incl. Figure(s) 06-04 - 06-21, 07-01

1шт.

8605546

REMAN-TRANSMISSION

Remanufactured Transmission; 621D, Model Number 4WG160, Stock Number 4656 054 025

1шт.

8605545

CORE-TRANSMISSION

Return Part Number

1шт.

1

87519452

HYDRAULIC OIL FILTER

Replaces 8603535; Has Increased Burst Pressure And Change Interval

1шт.

2

8603403

FILTER HEAD

1шт.

3

8603404

O-RING

2шт.

4

8603311

SCREW

2шт.

5

8603396

BOLT,Hex, M8 x 18mm

M8 x 18

4шт.

6

8603217

COVER

2шт.

7

8603281

GASKET

2шт.
