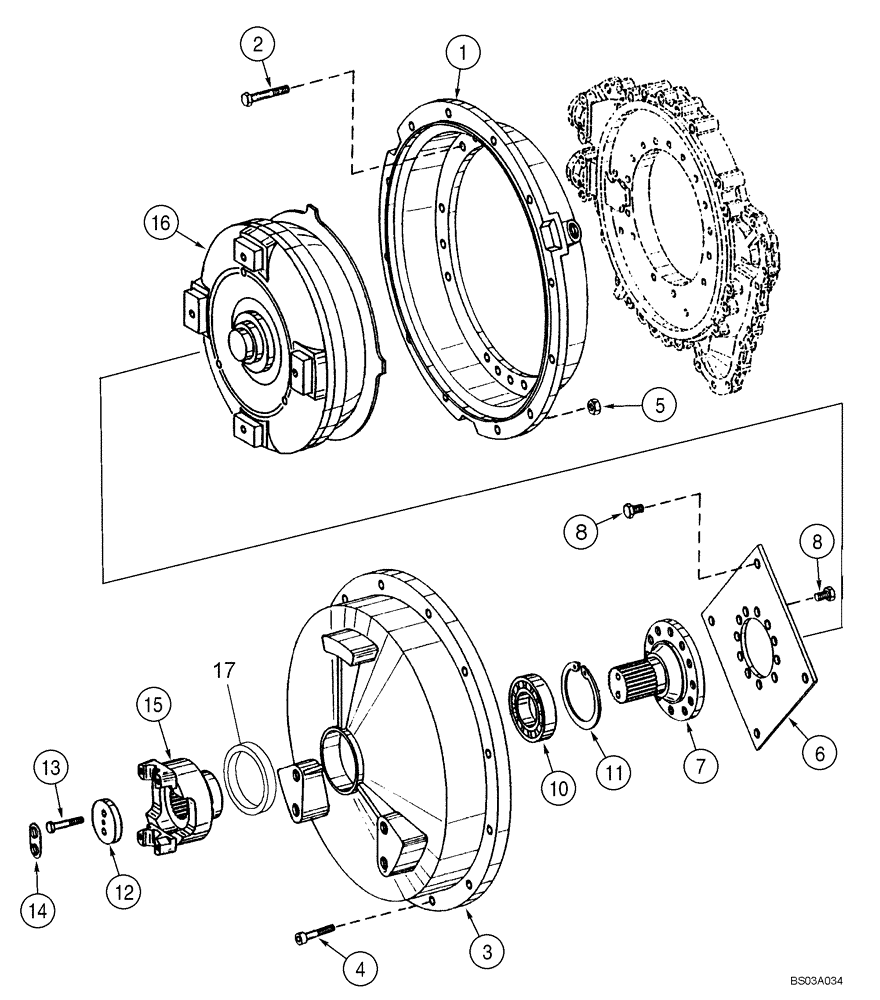

Запчасти Case 621D (06-04) - TRANSMISSION - CONVERTER, COVER AND INPUT SHAFT (06) - POWER TRAIN

8605271

TRANSMISSION

See Figure(s) 06-04 - 06-21, 07-01

1шт.

8605546

REMAN-TRANSMISSION

Remanufactured Transmission; 621D, Model Number 4WG160, Stock Number 4656 054 025

1шт.

8605545

CORE-TRANSMISSION

Return Part Number

1шт.

1

8603292

BELL HOUSING

1шт.

2

8603293

SCREW,Hex, M10 x 65mm

M10 x 65

18шт.

3

8604676

COVER

1шт.

4

8603466

SCREW,M10 x 50mm

M10 x 40

12шт.

5

829-1510

NUT,M10, Cl 10

12шт.

6

8603633

DIAPHRAGM

1шт.

7

8604677

HUB

Replaces 8603663; Prior To S/N 1320286, Transmission Serial Break

1шт.

7

87712322

SHAFT

S/N 1320286 And After, Transmission Serial Break

1шт.

8

8603294

SCREW,Hex, M12 x 18mm

M12 x 18

20шт.

10

8604678

BALL BEARING

1шт.

11

87410351

SNAP RING

1шт.

12

8603635

WASHER

1шт.

13

8603405

BOLT,Hex, M8 x 50mm

M8 X 50

2шт.

14

8603636

WASHER

1шт.

15

8603637

YOKE

1шт.

84154362

SERVICE KIT

Torque Converter; Incl. 87712647 Converter and (8) 1493305 Washers

1шт.

16

8605279

TORQUE CONVERTER

Torque; Prior To S/N 1320286; No Longer Available, Order Torque Converter Kit 84154362

1шт.

16

87712647

CONVERTER

Torque; S/N 1320286 And After

1шт.

16

87712647R

REMAN-TORQUE CONVERT

ER Remanufactured

1шт.

16

87712647C

CORE-TORQUE CONVERTR

Core-Torque Converter, Return Part Number, S/N 1320286 And After

1шт.

17

8604229

RING

1шт.
