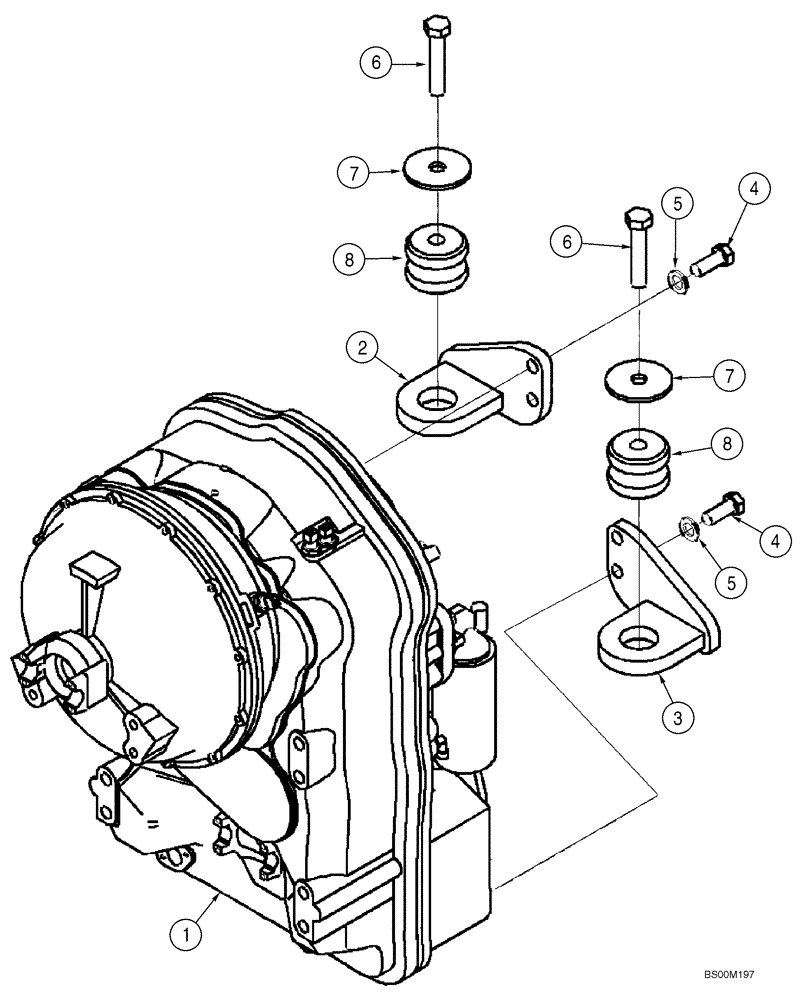

Запчасти Case 621D (06-02) - MOUNTING - TRANSMISSION (06) - POWER TRAIN

1

8605271

TRANSMISSION

See Figure(s) 06-04 - 06-21, 07-01

1шт.

1

8605546

REMAN-TRANSMISSION

Remanufactured Transmission; 621D, Model Number 4WG160, Stock Number 4656 054 025

1шт.

1

8605545

CORE-TRANSMISSION

Return Part Number

1шт.

2

357657A1

BRACKET

Left Hand

1шт.

3

357654A1

BRACKET

Right Hand

1шт.

4

627-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

4шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

6

827-22110

BOLT,Hex, M22 x 2.5 x 110mm, Cl 10.9

2шт.

6

827-22120

BOLT,Hex, M22 x 2.5 x 120mm, Cl 10.9

Replaces 827-22110

2шт.

7

361771A1

WASHER

2шт.

7

8604726

WASHER,23.8mm ID x 85.7mm OD x 6.4mm Thk

Replaces 361771A1

2шт.

7

379611A1

WASHER

Replaces 8604726

2шт.

8

361187A1

ISOLATOR

3шт.

9

827-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

Not Illustrated

2шт.
