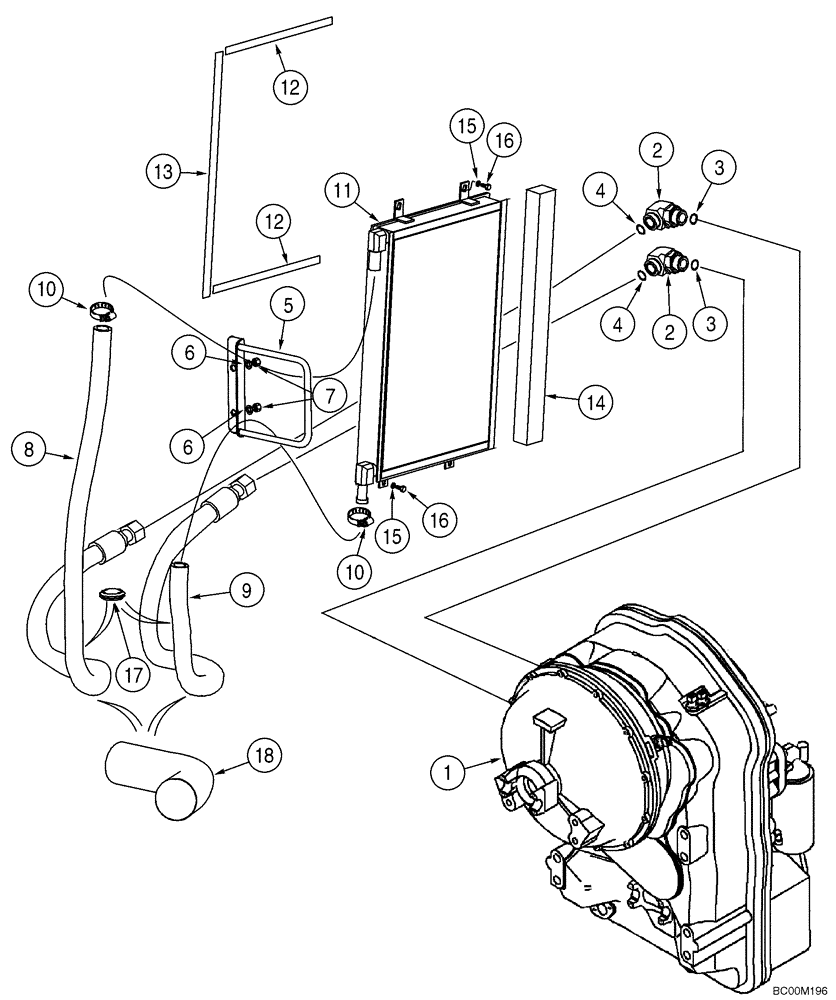

Запчасти Case 621D (06-01) - HYDRAULICS - TRANSMISSION (06) - POWER TRAIN

1

8605271

TRANSMISSION

See Figure(s) 06-04 - 06-21, 07-01

1шт.

1

8605546

REMAN-TRANSMISSION

Remanufactured Transmission; 621D, Model Number 4WG160, Stock Number 4656 054 025

1шт.

1

8605545

CORE-TRANSMISSION

Return Part Number

1шт.

2

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-7/16 fc x 1-5/16 Orb; Incl. 3, 4

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss Seal

1шт.

4

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

5

408344A1

BRACKET

1шт.

5

87438301

BRACKET

Hose Retainer

1шт.

5

87366149

RETAINER

BRACKET Hose Retainer; Replaces 87438301; Larger Mounting Plate; Smaller Hose Area

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

402094A1

HOSE ASSY.

2028 mm (79-7/8 in); Transmission To Cooler

1шт.

9

402095A1

HOSE ASSY.

1498 mm (59 in); Cooler To Transmission

1шт.

10

353036A1

HOSE CLAMP,32mm - 54mm

2шт.

11

401430A1

COOLER, OIL

1шт.

12

382259A1

SEAL

2шт.

13

382258A1

OIL SEAL

1шт.

14

382262A2

OIL SEAL

1шт.

15

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

17

248-1185

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

2шт.

18

412511A1

HOSE PROTECTION

1шт.
