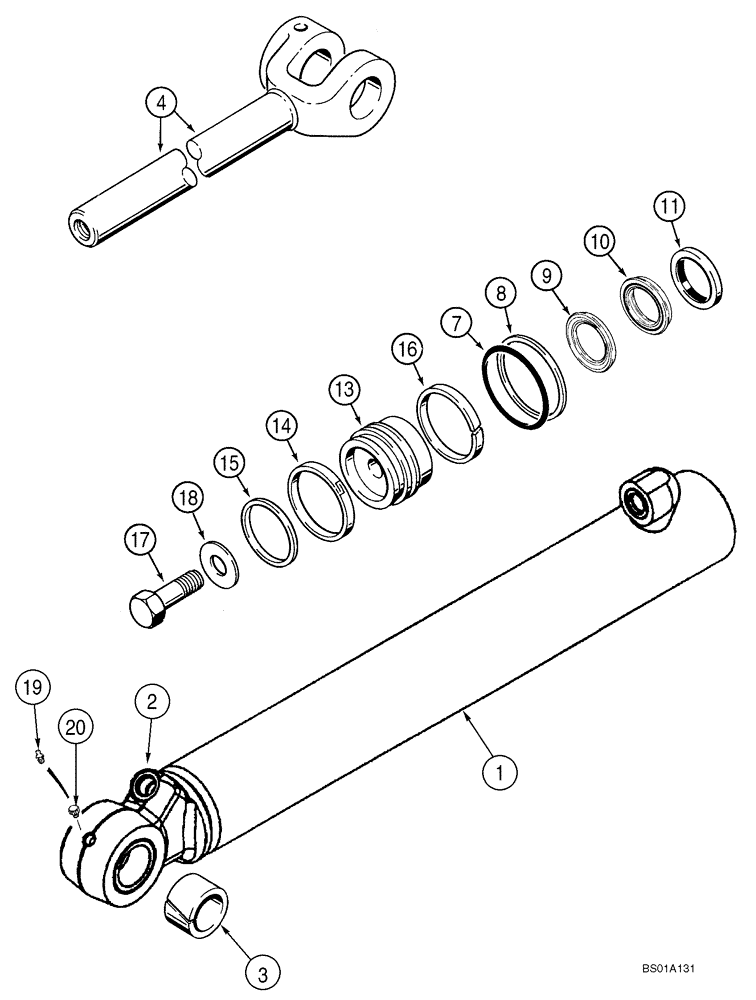

Запчасти Case 621D (05-10) - CYLINDER ASSY - STEERING (05) - STEERING

87405377

STEERING CYLINDER

70 ID x 463 strk; Steering; Incl. 1 - 21

2шт.

87405377R

REMAN-HYD CYLINDER

621D CASE WHEEL LOADER - NA (S/N JEE0135501 & AFTER), 70 ID x 463 strk, Steering (1/03-)

2шт.

87405377C

CORE-HYD CYLINDER

Return Number

2шт.

1

359185A1

TUBE,69.82 mm ID, 85.9 mm OD, 663 mm Length

Incl. 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

Eye

1шт.

3

141005A1

BUSHING,35.19mm ID x 45mm OD x 22mm L

2шт.

4

359183A1

ROD ASSY.

1шт.

359120A1

PACKAGE

Incl. 15 - 18

1шт.

5

349523A1

GLAND

Incl. 6 - 12

1шт.

6

349522A1

GLAND

1шт.

7

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

1542874C1

SEAL KIT,38.1mm Rod

Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Seal

1шт.

10

NSS

NOT SOLD SEPARAT

Seal

1шт.

11

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Piston Ropd

1шт.

12

352218A1

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

Piston Rod; Not Illustrated

1шт.

349521A1

PISTON ASSY.

Incl. 13 - 16

1шт.

13

349520A1

PISTON

1шт.

14

349519A1

SEAL,66.3mm ID x 71.02mm OD x 6.96mm Thk

1шт.

15

G104439

RING

1шт.

16

349518A1

RING

1шт.

17

86982435

SPECIAL BOLT,3/4" - 16 x 2-1/2"

3/4 NF x 2-1/2; 8; Incl. 18

1шт.

18

NSS

NOT SOLD SEPARAT

Washer

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/4 tpr x 15/16

1шт.

20

553-104

PLUG,M16 x 1.5, ORB, Plastic

2шт.

21

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

Ring; Not Illustrated

1шт.

360987A1

KIT

Incl. 7, 8, 11, 12, 15, 16, 21

1шт.
